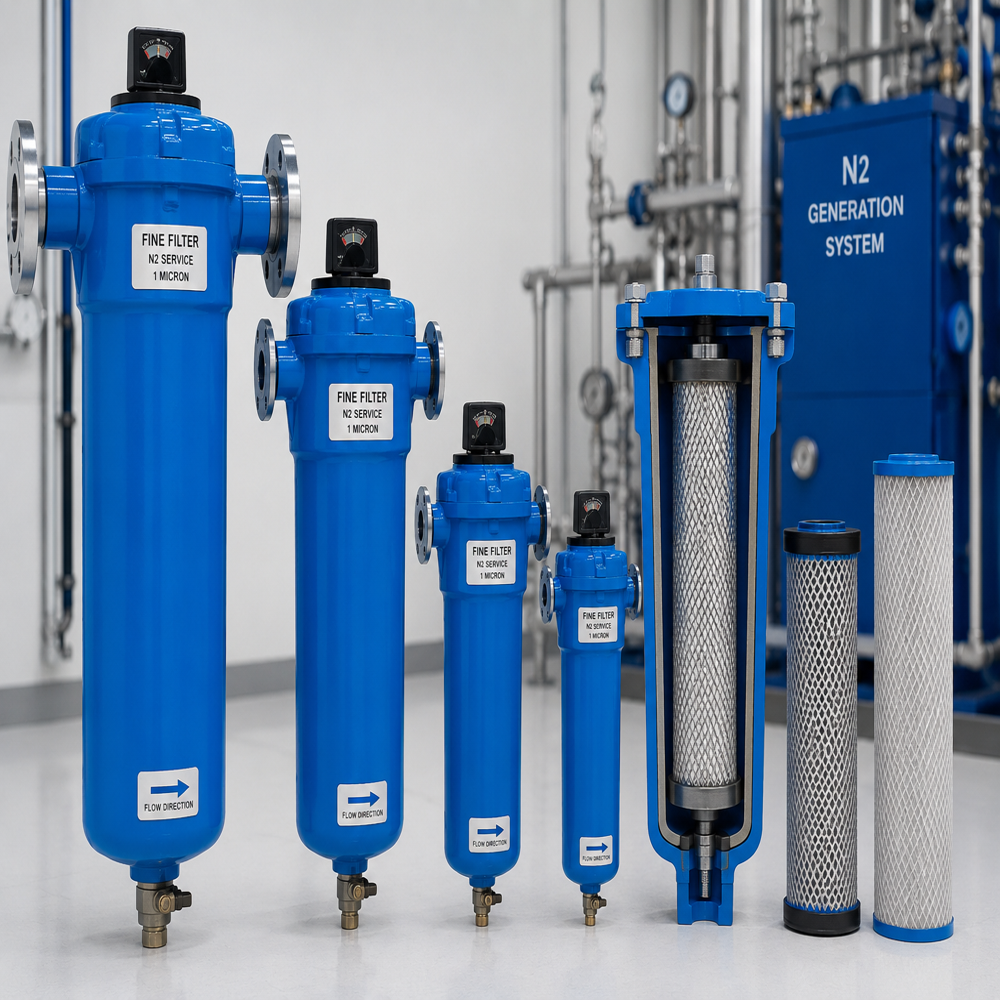

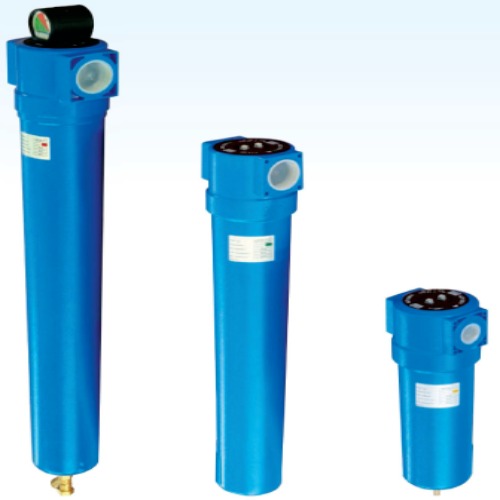

FINE FILTER

FINE FILTER About

• PP Micron Ultra Filtration System: Houses melt-blown or pleated polypropylene depth cartridges. It handles high throughput and targets fine suspended solids down to 1 micron. [
• High-Efficiency Bag Filters: Employs fine felt or microfiber bags inside an SS housing. They offer high dirt-holding capacity and up to 99% efficiency for capturing fine pipeline rust and clay.

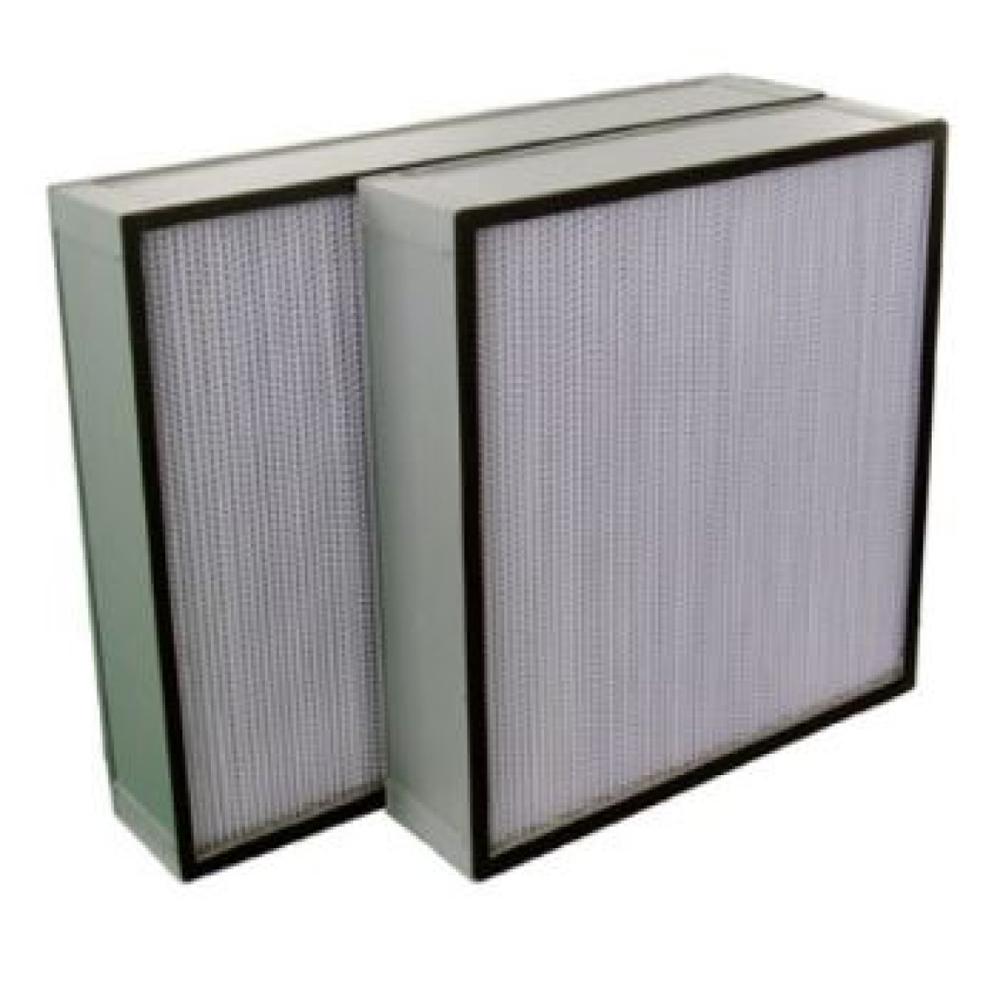

• Flange & Box Type Panel Filters: Utilizes HDPE or synthetic non-woven fiber media pleated over an aluminium mesh. These are graded from M5 to F9 under EN 779 standards.
• Rigid V-Bank / Pocket Filters: Heavy-duty designs built with large surface areas. They sit immediately after air pre-filters to safeguard terminal HEPA/ULPA systems from premature clogging.

• Standard Air Module Dimensions: Commonly framed in sizes like 610 mm x 610 mm (24" x 24") or 545 mm x 545 mm, with depths of 50 mm, 100 mm, or 300 mm.
• Liquid Housing Diameters: Single or multi-round cylinder shells spanning from 4 inches to 24+ inches depending on the flow grid.
• Connection Formats: Available with standard ANSI flanges, DIN flanges, or NPT threaded ports to match existing manifold structures.

• Micron Precision Profile: Available in nominal ratings (retains 85% of target particle sizes) or absolute ratings (retains 99.9% for sterile loops).
• Flow Capacity Scale: Liquid configurations range from 1,000 to 10,000+ Litres Per Hour (LPH), while air configurations support multi-stage industrial ventilation.
• Structural Frame Materials: Manufactured with durable SS 304, Galvanized Iron (GI), or Anodized Aluminium to resist corrosion.

• RO Pre-Treatment: Prevents micro-particles from fouling expensive Reverse Osmosis membranes.
• HVAC & Cleanrooms: Serves as secondary filtration in hospitals, server rooms, and pharmaceutical facilities to trap pollen and mold.
• Pneumatic Protection: Cleans compressed air and technical gas lines upstream of high-accuracy flow meters and spray nozzles. [
