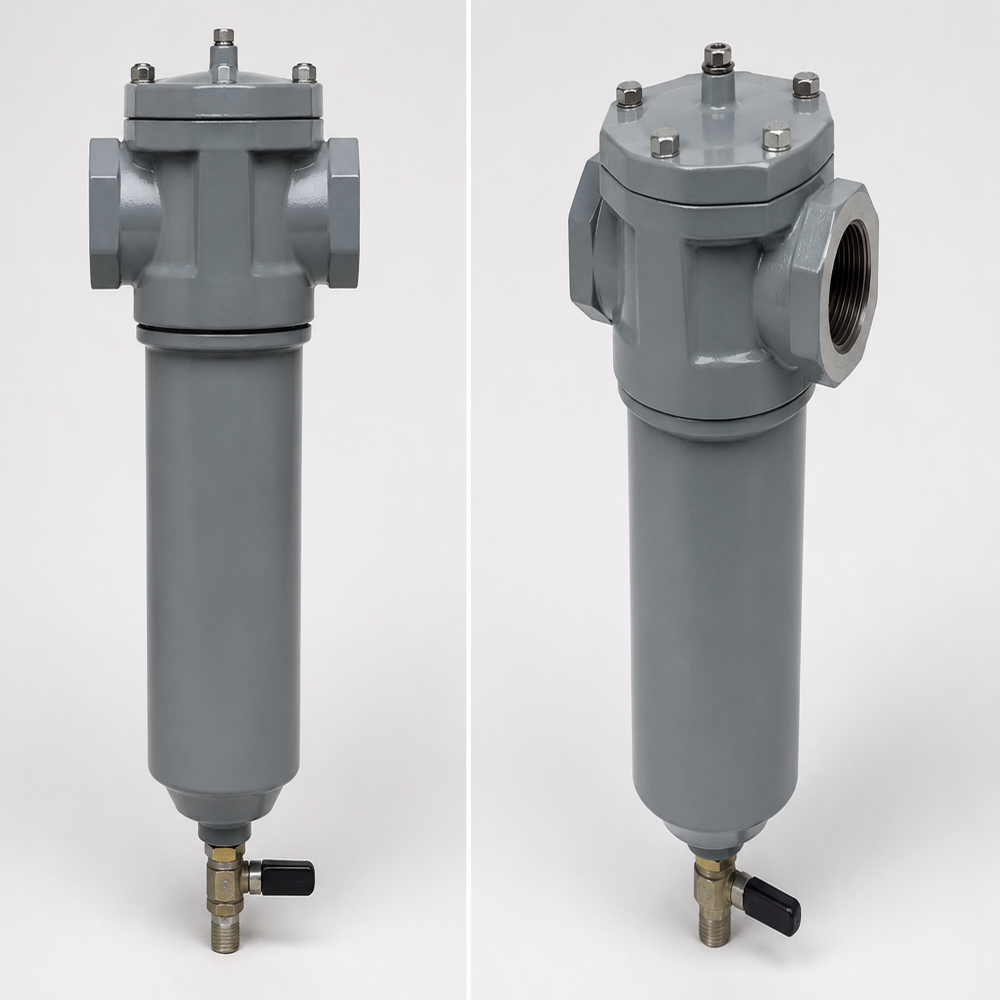

SUB MICRO FILTER

Name: SUB MICRO FILTER
Brand: PIN FILT TECHNOLOGIES
Price: 6500.0 INR
Availability: InStock

Price 6500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Usage
Compressed Air Systems removes ultra-fine particles and contaminants. Pneumatic Equipment protects valves, cylinders and air-operated machinery. Instrument Air provides clean air for sensitive instruments and control systems. Pharmaceutical Industries for high-purity process air. Food & Beverage Industries helps maintain clean process air. Medical & Healthcare Air Systems fine contaminant removal. Chemical & Process Industries filtration of process gases. Paint & Spray Systems prevents fine contamination of finished surfaces. Air Dryers & Downstream Equipment installed after moisture/coalescing filtration for finer filtration.

Main Export Market(s)
Australia, Central America, Middle East, Africa, Eastern Europe, Western Europe, North America, South America, Asia

Core Technical Specifications

Filtration Rating: Typically 0.01 m to 0.3 m absolute rating.
Filter Media: Primarily constructed from structured borosilicate microglass fibers, matrixed cellulose, or porous ceramics.
Housing Material: Die-cast aluminum alloy, powder-coated steel, or corrosion-resistant stainless steel.
Flow Capacity: Ranges widely from point-of-use units at 45100 CFM to heavy-duty main-line industrial systems exceeding 1,800 m/hour.
Operating Limits: Max pressures typically span 10 to 16 bar (145232 PSI) for standard lines, with high-pressure variants handling up to 45 bar. Standard temperature ceilings hover around 60C to 100C.
Efficiency: Up to 99.9999% particle and oil retention down to 0.01 ppm residual oil content. [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

Main Types of Industrial Sub-Micro Filters

Industrial setups categorize these elements based on their exact functional stage:

Filter Type	Micron Target	Primary Function	Typical Placement
Fine Micro Filter	0.1 m 0.3 m	Removes fine dust particles and small liquid droplets.	Downstream of a standard 5-micron pre-filter.
Sub-Micronic Coalescing	0.01 m	Forces oil/water aerosols to merge into larger droplets for gravity drainage.	Pre-adsorption air drying or pre-fusing lines.
Activated Carbon Sub-Micro	0.01 m + vapor	Combines sub-micron trapping with an active bed to adsorb oil vapors and odors.	Final stage for breathing air or food packaging.

Common Industrial Uses

Compressed Air Systems & Pneumatics: Safeguards high-precision valves, air cylinders, and pneumatic tools from oil fouling and moisture corrosion.
Critical Manufacturing: Essential downstream equipment protection for automated machinery, automotive paint spray booths (preventing cratering defects), and plasma cutters.
Electronics & Semiconductors: Clears sub-micron chemical impurities and particulates to protect fragile silicon wafer environments.
Pharmaceuticals & Liquid Purification: Utilized as a sterile pre-treatment barrier to eliminate bacteria, microplastics, and heavy metal sediment.
