Line Filters

Line Filters About

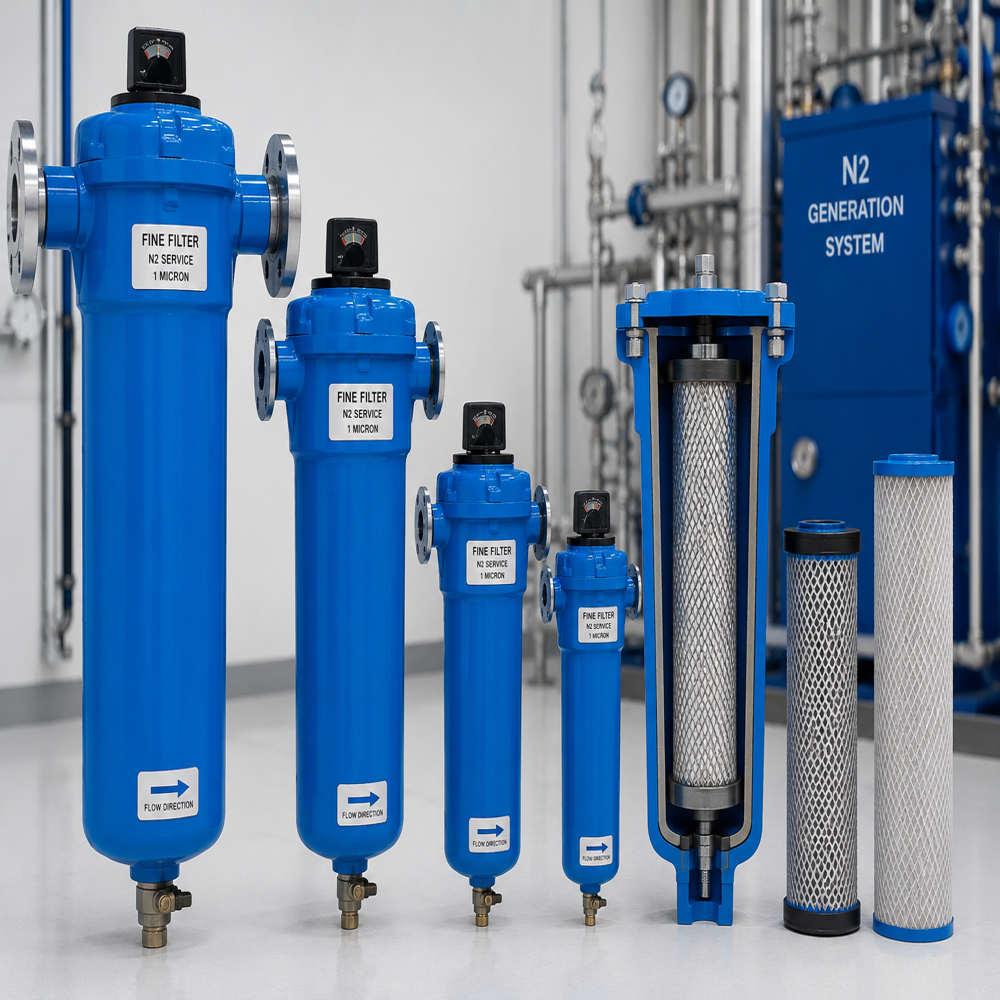

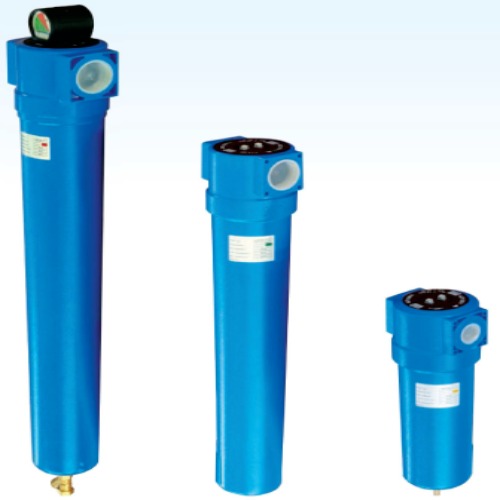

• Pneumatic Inline Air Filters: Lightweight aluminum or composite bowls installed on compressed air drops. They strip out condensed water droplets, compressor oil aerosol carryover, and pipe scale right before the air reaches pneumatic tools or automated valves.
• High-Pressure Hydraulic Line Filters: Heavy, thick-walled steel housings placed on the discharge side of hydraulic pumps. They remove micro-abrasives to protect high-tolerance proportional or servo-valves under intense pressure spikes.
• Process Liquid Line Filters: Fabricated [Stainless Steel 316 (SS 316)](1/2 flange end ss 316 filter housing with code 7 pp cartridges FSP technologies price ?) or T-type metallic housings that clean water, solvents, and fuel loops. They generally use replaceable [pleated or spun element cartridges](1/2 flange end ss 316 filter housing with code 7 pp cartridges FSP technologies price ?).
• Sanitary Inline Strainers / Filters: Crevice-free, highly polished stainless steel units designed with hygienic Tri-Clamp connections. These are mandated in dairy, food, beverage, and pharmaceutical product transfer pipelines [1/2 flange end ss 316 filter housing with code 7 pp cartridges FSP technologies price ?].

• Filter Head: The permanent top cast block that links directly into the pipeline plumbing. It houses the inlet and outlet ports, and often includes mounting holes to secure the assembly to a machine frame.
• Filter Bowl / Canister: The threaded or bolted lower container housing that encloses the internal filtration media.
• Filter Element Core: The replaceable or cleanable cartridge that performs the actual particle separation as fluid passes from the outside inward.
• Bypass Valve: An integrated safety valve inside the filter head. If the element becomes fully clogged, the bypass cracks open to maintain line circulation, preventing element collapse or complete system blockage.

• Pneumatic Automation: Placed on compressed air mainlines to ensure dry, oil-free power for precise factory automation cylinders, spray painters, and packaging machines.
• Machine Tool Lubrication: Installed directly in cutting fluid or lubrication oil pipe feeds to remove metal micro-chips before fluid hits spinning bearings or cutting tools.
• Pre-Equipment Safety: Positioned directly ahead of sensitive instruments like inline flow meters, pressure sensors, and analytical spray nozzles to prevent clogging and erratic readings.
