Ss 316 Housing Filters ( Customised)

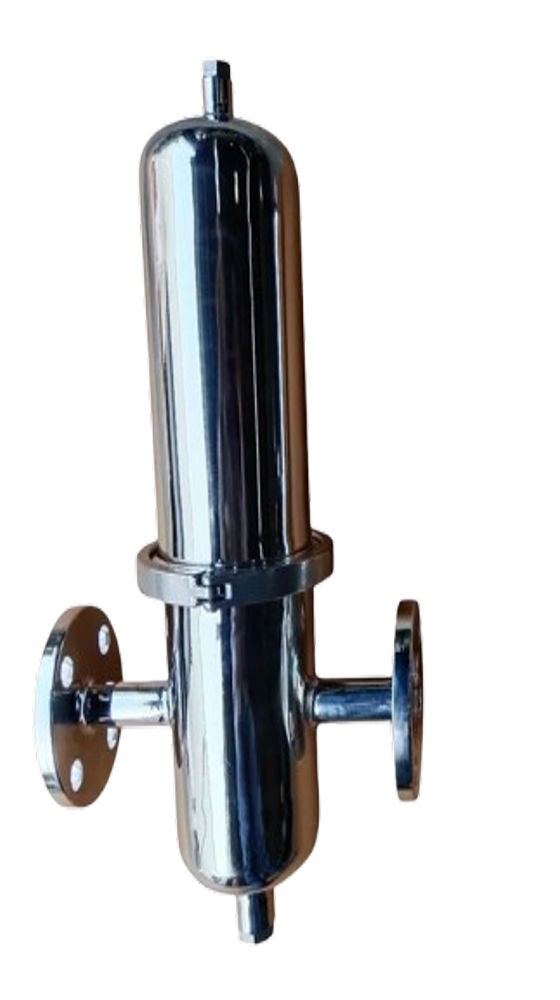

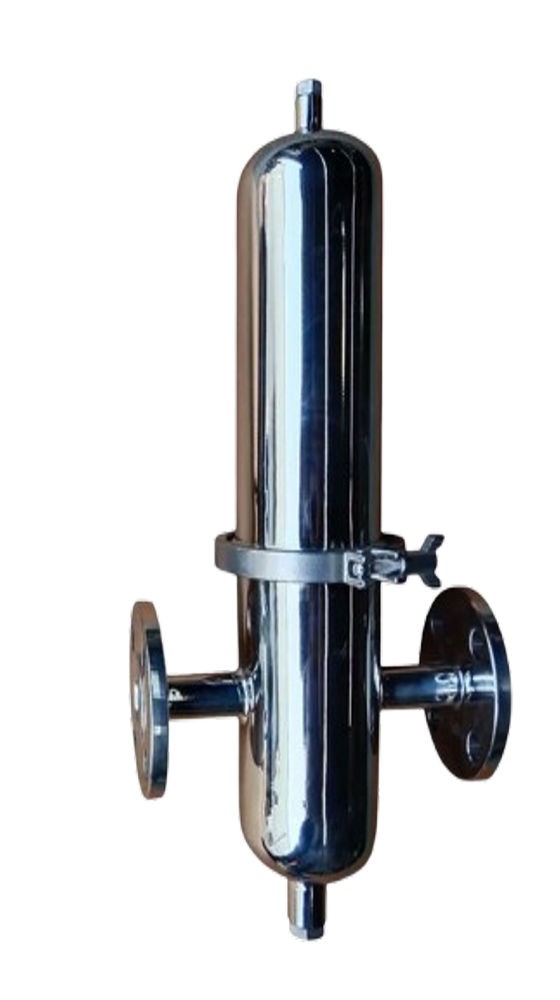

Name: SS 316 HOUSING FILTERS ( CUSTOMISED )
Brand: PIN FILT TECHNOLOGIES
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Ss 316 Housing Filters ( Customised) Specification

Usage
Liquid ClarificationSanitary Water FiltrationBeverage PolishingRO System Post-FiltrationFine Chemical ProcessingSterile Fluid Venture

Size
1" Inch (DN25), 1.5" Inch (DN40), or 2" Inch (DN50),3"..10"..20" OR CUSTOMISED

Product Type
Filter HousingCartridge Filter HousingLiquid Filter HousingSanitary Filter Housing

Weight
10-10000 Kilograms (kg)

Color
SILVER

Width
10-10000 Millimeter (mm)

Length
10-10000 Millimeter (mm)

Design Compliance
ASME/SS fabrication standards

Housing Capacity
1/3/5/7/9/12/21/30 round (as per model)

Mounting
Skid or wall-mountable

Gasket Material
Silicone/Viton/PTFE/EPDM

Operating Temperature
Upto 150C

Air Vent/Valve
Provided (manual or automatic)

Drain Port
Included with ball valve

Suitable Fluids
Water, solvents, chemicals, compressed air

Serviceability
Easy-open clamp for cartridge replacement

Finish
Mirror polished (inside and outside)

End Connections
Tri-clamp, flange, or threaded

Corrosion Resistance
Excellent due to SS316 construction

Ss 316 Housing Filters ( Customised) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
25 Pieces Per Week

Delivery Time
3 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Domestic Market
East India, Gujarat, Karnataka, Kerala, Lakshadweep, Assam, West India, North India, Andhra Pradesh, Bihar, Chandigarh, Jharkhand, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Mizoram, Meghalaya, Manipur, Daman and Diu, Goa, Odisha, Punjab, Pondicherry, Uttar Pradesh, West Bengal, South India, Central India, Arunachal Pradesh, Chhattisgarh, Haryana, Sikkim, Tamil Nadu, Telangana, Tripura, Uttarakhand

Ss 316 Housing Filters ( Customised) About

Parameter	Specification
Product Name	Stainless Steel Filter Housing
Housing Type	Single Cartridge / Multi-Cartridge
Material of Construction (MOC)	SS304 / SS316 / SS316L
Cartridge Capacity	1, 3, 5, 7, 12, 21, 36 & 52 Round
Cartridge Length	10", 20", 30", 40"
Cartridge OD	2.5" / 2.75"
Filter Media Compatibility	PP, Pleated, Carbon, SS316, PTFE, PES, Nylon Cartridges
Maximum Working Pressure	10 Bar (Higher Pressure Available on Request)
Test Pressure	15 Bar
Operating Temperature	-10C to +150C (Depending on Seal Material)
Surface Finish	Mirror Polish / Matt Finish (180320 Grit)
Connection Type	BSP, NPT, Tri-Clamp, Flanged
Inlet & Outlet Size	" to 6"
Vent Connection	" BSP
Drain Connection	" to " BSP
Seal Material	Silicone, EPDM, Viton, PTFE
Closure Type	Swing Bolt / Clamp / Eye Bolt
Design Standard	ASME / GMP Design (Optional)

High-efficiency Filtration Solutions

SS 316 Housing Filters offer robust, reliable filtration for various industries, including water treatment, pharmaceuticals, and beverages. Their corrosion-resistant stainless steel construction and mirror-polished finish prevent contamination, ensuring hygienic operation. Customizable capacity and pore size enable precise filtration performance, suitable for a wide range of fluids and particulates.

User-friendly Design and Operation

Designed for convenience, these housings include an easy-open clamp mechanism for swift cartridge changes and minimal downtime. The units come with manual or automatic air vent/valve and a drain port with ball valve, simplifying operation and maintenance. Multiple gasket materials and end connection types adapt to diverse process requirements.

FAQ's of SS 316 HOUSING FILTERS:

Q: How do I select the appropriate SS 316 Housing Filter model for my application?

A: To choose the correct model, consider the required flow rate, fluid type (water, solvents, chemicals, or compressed air), capacity (number of cartridges), required micron rating, and compatibility of connection types (tri-clamp, flange, or threaded). Custom pore size and cartridge style are also factors based on your filtration needs.

Q: What maintenance process is involved with these filter housings?

A: Maintenance is simple due to the easy-open clamp, allowing quick cartridge replacements. The housing includes a drain port with a ball valve for safe liquid removal and air venting, which may be manual or automatic. Regular inspection of gaskets and internal surfaces is recommended to ensure long service life.

Q: Where can SS 316 Housing Filters be installed?

A: These filter housings are versatile and can be mounted on a skid or wall, catering to facility layout and operational requirements. Their robust design makes them suitable for installation in laboratories, process plants, water treatment systems, chemical facilities, and more.

Q: What are the benefits of the mirror-polished finish on these filters?

A: The mirror-polished finish, both inside and outside, enhances corrosion resistance, facilitates thorough cleaning, and minimizes the risk of product contamination-especially critical in hygienic or pharmaceutical environments.

Q: How does the housing ensure efficient filter replacement and process continuity?

A: The clamp closure provides tool-free, fast access, enabling swift cartridge changes without disrupting operations. This minimizes downtime and maintains filtration efficiency even during service activities.

Q: When is it recommended to use different gasket or sealing materials?

A: Gasket material (Silicone, Viton, PTFE, or EPDM) should be selected based on chemical compatibility with the filtered fluids, operating temperature, and regulatory requirements to ensure optimal performance and leak-free operation.
