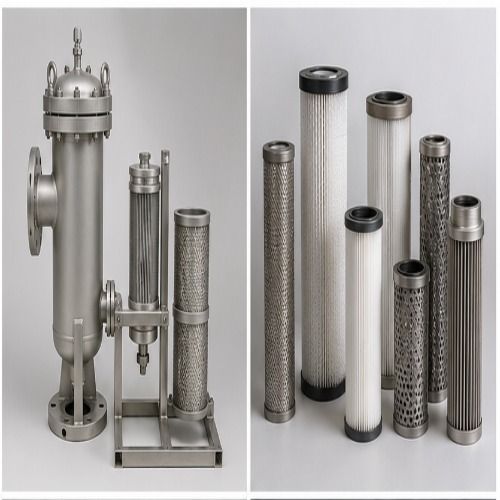

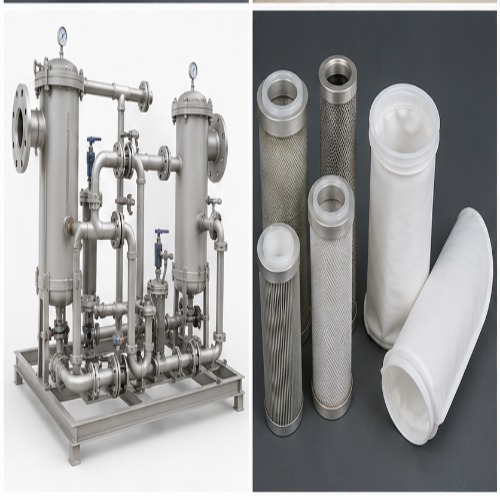

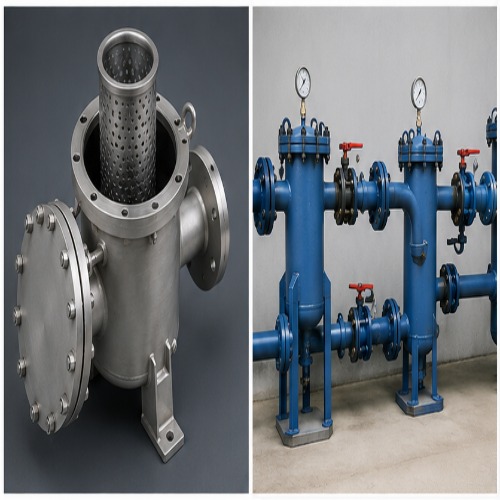

Natural Gas Filters

Name: Natural Gas Filters
Brand: PIN FILT TECHNOLOGIES
Price: 45000.00 INR
Availability: InStock

Price 45000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Natural Gas Filters Specification

Efficiency (%)
99%

Usage
Removal of dust, rust, scale & solid particles from natural gas Removal of liquid droplets and aerosols using coalescing filtration Protection of gas compressors Protection of gas turbines & engines Protection of gas meters, regulators & valves Natural gas pipeline filtration CNG / LNG gas filtration City gas distribution systems Refinery & petrochemical gas processing Power generation plants Gas pressure regulating stations Pre-filtration before downstream gas equipment

Height
500 TO 3000 Millimeter (mm)

Product Type
Natural Gas Filter

Weight
30 TO 1500 Kilograms (kg)

Color
BLUE

Width
150 TO 1500 Millimeter (mm)

Length
300 TO 3000 Millimeter (mm)

Application
Natural gas pipelines City gas distribution CNG & LNG systems Gas compressor protection Gas meters & regulators Gas engines & turbines Refineries & petrochemical plants Power generation Oil & gas processing

Natural Gas Filters Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA), Cheque

Delivery Time
3 Days

Packaging Details
BOX PACKING

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
TEST CERTIFICATE

Natural Gas Filters About

Natural Gas Filters are industrial process pressure vessels designed to strip solid particulates, pipeline scales, moisture aerosols, and oil mists out of natural gas streams. They prevent critical fouling, wear, and system blockages across city gas stations, pressure-reduction skids, metering stations, and upstream exploration pipelines.

Core Types of Natural Gas Filters

Depending on the nature of the pipeline contamination, industrial setups prioritize one of two functional system classifications:

1. Dry Gas Particulate Filters

Primary Duty: Removes dry solid contaminants like iron sulfides, black powder, pipeline rust, sand, and welding scales.
Mechanics: Gas flows through depth-type filter cartridges from the outside-in, providing maximum surface area contact to secure high dirt-holding capabilities.
Media Types: Most commonly built with economical fiberglass cores, pleated polypropylene, or pleated polyester sheets to handle high solids loading with low pressure drop.

2. Gas Coalescing / Separator Filters

Primary Duty: Extracts liquid contaminants like water aerosols, glycol, condensed hydrocarbons, and compressor lube oils.
Mechanics: Employs an inside-out flow matrix. As wet gas passes through the micro-fiber element layers, microscopic liquid mist droplets collide, agglomerate (coalesce) into heavy drops, and fall via gravity into an isolated collection sump.
Media Types: Hydrophobic borosilicate glass fibers or advanced fluoropolymer-coated synthetic blends to resist wetting out.

Engineering & Technical Specifications

Parameter	Standard Industrial Engineering Ranges
Material of Construction (MOC)	Cast/Ductile Iron, Cast Carbon Steel (WCB), or Stainless Steel (SS304/316) for aggressive sour gas lines.
Design Pressure & Codes	Designed per ASME Section VIII Div 1 codes; capable of handling high-pressure lines up to 300 Bar (4350+ PSI).
Filtration Efficiency	Standard protection drops to 5 microns; absolute high-efficiency systems reach 0.2 to 0.01 microns (99.9% filtration accuracy).
Vessel Orientations	Vertical: Best for compact footprints and easy handling of low liquid volumes. Horizontal: Ideal for heavy solid settlements and multi-stage separation setups.

Key Applications Across the Gas Grid

Pressure Reduction & Metering Stations (PRMS): Protects downstream flow meters, control valves, and high-precision regulators from abrasive particles. [1]
Compressor Stations: Installed on the inlet to block fouling solids from entering compressor cylinders, and on the outlet to recover entrained lube oil.
Gas Dehydration Units: Shields glycol and amine sweetening arrays from foaming caused by particulate interaction.

Procurement Options & Cost Guidelines in India

Pipeline & Commercial Components: Compact 1/2" to 2" threaded or flanged gas filters (often featuring cast iron/aluminum shells and brass meshes) typically range from 5,000 to 15,000 via regional dealers on platforms like Pune Gas and Tradeindia.
High-Efficiency Replacements: Specialized 0.2-micron natural gas filter element modules range from 1,000 to 2,500 depending on the sizing configuration.
