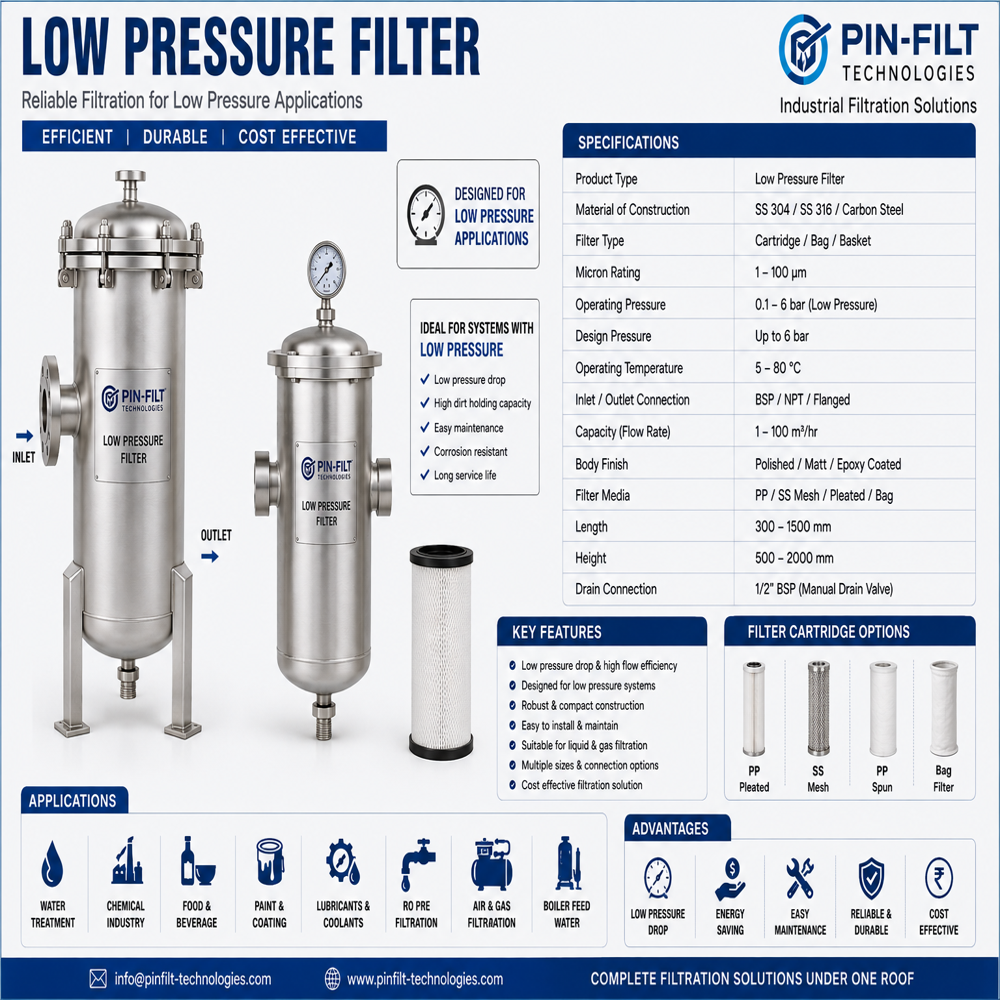

LOW PRESSURE FILTER

Price 6500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LOW PRESSURE FILTER Specification

Usage
Return Line Conditioning, Pump Suction Shielding,Pneumatic Line Conditioning,Kidney-Loop (Off-Line) Purification, Monitor the Visual Indicator,Bypass Valve Management, Cold Start Handling

Size
1/4 TO 3/4

Height
175 TO 1120 Millimeter (mm)

Product Type
Spin-On Canister Filters,Tank-Top / In-Tank Filters,Inline Bowl-Type Filters,Return Line Filters,Suction / Intake Filters,Kidney-Loop / Off-Line Filters,Out-to-In Flow Elements

Weight
O.25 TO 65 Kilograms (kg)

Color
BLUE

Width
90 TO 400 Millimeter (mm)

Length
170 TO 1080 Millimeter (mm)

Application
Machinery Fluid Power & Hydraulics,Factory Pneumatics & Compressed Air, Industrial Process Cooling & Water Loops

LOW PRESSURE FILTER Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About LOW PRESSURE FILTER

1. Functional Placement & Types

Low-pressure filters are deliberately integrated at specific, low-stress points of a pipeline network to protect major hardware:

Suction / Intake Filters: Positioned directly on the intake or suction line ahead of a pump. They perform coarse filtration to shield the pump's internal impellers and gears from large debris.
Return Line Filters: Mounted on the final pipeline run where fluid discharges back into a reservoir tank. They catch all the fine internal wear debris accumulated across the active circuit before the fluid drops back into storage.
Bypass / Off-Line Filters: Independent secondary loops that continuously bleed off a small fraction of low-pressure flow, polish it through ultra-fine media, and return it to the main reservoir.
Pneumatic FRL (Filter-Regulator-Lubricator) Units: Deployed on compressed air lines (usually maxing out at 10 to 12 bar) to strip moisture and solid particulates right before air tools or pneumatic actuators.

2. Sourcing Specifications & Engineering Bounds

When procurement managers source low-pressure filters from industrial suppliers or B2B platforms like IndiaMART or Tradeindia, assemblies are selected within these core structural brackets:

Parameter	Standard Industrial Engineering Specifications
Max Pressure Limit	Standard ratings of 2 Bar to 10 Bar (Heavy-duty spin-ons can max at 35 Bar)
Housing Design	Lightweight Cast Aluminum, Co-Polymer Plastic, or [304/316 Stainless Steel](1.1.7, 1.2.1)
Flow Rates	Ranging from compact 38 LPM up to large industrial lines moving 3,200 LPM
Filtration Range	Coarse 40 to 100 microns (Suction side) down to precise 0.01 to 5 microns (Gas/Return)
Connection Sizes	Standard NPT, BSP, or Flanged ports ranging from 1/4" to 3"

3. Integrated Engineering Safeguards

Because low-pressure components use thinner, cost-effective housings (like aluminum or polycarbonate), they utilize integrated mechanical safeguards to prevent failure:

Bypass Valves: An internal mechanical relief valve (typically set to crack open at 1.7 to 2.5 bar of differential pressure). If the element completely plugs up with dirt, the valve cracks open to maintain steady system fluid circulation and prevent the element from bursting.
In-to-Out Flow Element Design: Modern low-pressure cartridges (such as the Parker PT Series) route fluid from the inner hollow core outward. This traps all captured sludge securely inside the element tube, ensuring no dirt drops back down into the clean system when an operator pulls the filter out.
Clogging Indicators: Visual pressure gauges or differential electrical micro-switches that signal an alert the moment resistance increases, signaling maintenance crews before a bypass occurs.

4. Core System Applications

Mobile & Industrial Hydraulics: Deployed as tank-top or return-line filters on agricultural tractors, aerial lifts, turf equipment, and industrial machine tools.
Compressed Air Distribution: Used inline across factory shop floors to trap bulk water droplets, rust scales, and compressor oil carryover.
Automatic Fluid Pre-Treatment: Deployed as low-pressure backwash screen blocks for cooling tower loop circuits or municipal water intake lines.

Are you sizing this low-pressure filter for a hydraulic return line system, or is it for a compressed air / gas distribution header? If you can share your target flow rate (LPM or CFM), I can recommend specific housing and element cross-references.
