Send InquiryStrainer Filters
Price 7500.00 INR/ Piece
MOQ : 1 Piece
Strainer Filters Specification
- Capacity
- 10-10000 m3/hr
- Efficiency (%)
- 99%
- Usage
- Functional System Deployment,Pump Suction Protection,,Operational Procedures by Strainer Type,Monitor Differential Pressure:,Steam Trap Isolation,Nozzle & Spray Tip Shielding
- Material
- Stainless Steel
- Size
- 1/4 TO 48
- Height
- 75 TO 550 Millimeter (mm)
- Product Type
- Y-Type Strainers.Simplex Basket Strainers,,Duplex (Twin Basket) Strainers,T-Type Strainers
- Weight
- 3 TO 1800 Kilograms (kg)
- Color
- SILVER
- Width
- 1/4 TO 48 Inch (in)
- Length
- 130 TO 1300 Millimeter (mm)
- Working Temperature
- 220 Celsius (oC)
- Application
- Metallic Process Strainers,Plastic / Plastic-Lined Strainers,,Sanitary Strainers
Strainer Filters Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 10 Pieces Per Day
- Delivery Time
- 3 Days
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- BOX PACKING
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE
Strainer Filters About

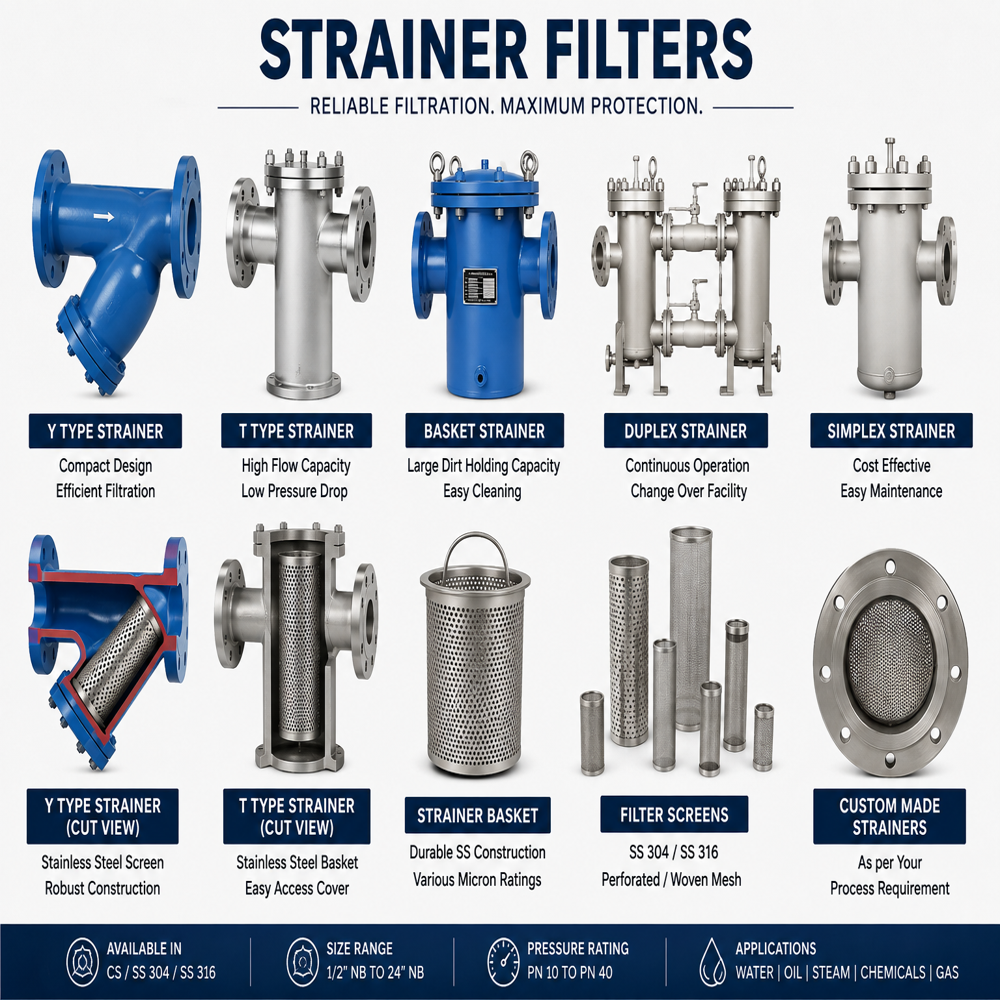

1. Primary Configuration Types
- Y-Strainer: Best for compact horizontal or vertical downward pipelines with lower debris loads.
- Basket / T-Strainer: Best for horizontal lines with high debris loads requiring regular cleaning.
- Duplex Strainer: Features dual chambers to allow continuous flow while cleaning one side.
2. Materials of Construction (MoC)
- Body: Cast Iron (low cost/pressure), Carbon Steel (high pressure/temp), Stainless Steel 304/316 (corrosive or high-purity fluids), or PVC / Polymers (water treatment/irrigation).
- Filter Screen (Mesh): Typically SS 304 or SS 316 for durability and rust resistance.
3. Sizing & End Connections
- Line Sizes: Standard ranges span from 1/2" to 24"+ Nominal Bore (NB).
- Connections: Screwed / Threaded (NPT/BSP) for small lines, Flanged (ANSI / DIN / EN) for industrial networks, or Socket-Weld.
4. Pressure & Temperature Ratings
- Pressure Class: Commonly Class 150 to Class 2500 (or PN10 to PN100+), operating between 10 to 400 bar depending on the gas or liquid application.
- Temperature Limits: Usually from -20C to over 400C (restricted by body metal and internal seals/gaskets like PTFE/Viton).
5. Filtration Element Specifications
- Perforation: Rough screening via punched holes (1mm to 10mm).
- Mesh / Micron Rating: Fine straining measured in mesh count or microns.
- 10 Mesh: ~2000 microns (large debris coarse removal).
- 40 Mesh: ~400 microns.
- 100120 Mesh: ~130 to 150 microns (standard for fine water protection).
