Send InquiryBasket Filters
Price 10000.00 INR/ Piece
MOQ : 1 Piece
Basket Filters Specification
- Efficiency (%)
- 99%
- Usage
- Primary Industrial ApplicationsPump and Valve Protection: Positioned directly on the suction side (upstream) of high-pressure pumps, control valves, and flow meters to prevent stones, weld slag, and rust flakes from jamming moving parts.Cooling Water Systems: Filters raw intake water from rivers, lakes, or cooling towers to stop leaves, twigs, and algae from entering heat exchangers and cooling jackets.Petrochemical & Oil Refining: Strains crude oil, fuel oils, and viscous lubricants to remove large carbon deposits and solid sediment before chemical refining phases.Chemical & Process Industries: Safeguards process loops by trapping unreacted solid materials or chemical precipitates from mixing tanks.Water Treatment Plants: Used as a coarse first-stage or second-stage screen to protect delicate downstream membrane systems (like ultrafiltration or reverse osmosis) from catastrophic puncture or fouling.2. Operational ClassificationsSimplex Basket Strainers (Pictured)When to use: Used in batch-processing lines or systems that can be safely paused or shut down.Operation: When the basket is full, the line is isolated, the pressure is bled off via the drain plug, and the quick-opening swing bolts are loosened to pull the basket out for a manual wash.Duplex Basket StrainersWhen to use: Crucial for continuous, 24/7 operations where a line shutdown is impossible (e.g., power plant fuel lines, continuous chemical plants).Operation: Features two identical chambers connected by a diverter valve. When one basket fills up, the valve shifts the fluid flow to the second chamber, allowing the operator to clean the first basket safely with zero interruption to production.
- Size
- .
- Height
- 8 TO 80 Inch (in)
- Product Type
- Simplex Basket Filter (Industrial Basket Strainer).
- Weight
- 3 TO 1500 Kilograms (kg)
- Color
- SURFACE
- Length
- 6 TO 60 Inch (in)
- Width
- 1 TO 40 Inch (in)
- Application
- Primary Equipment & Plant ProtectionPump Suction Shielding: Installed directly on the intake piping of expensive high-pressure centrifugal or positive displacement pumps to stop stones, gravel, and weld slag from destroying internal impellers or gears.Valve & Instrumentation Protection: Placed upstream of delicate modulating control valves, pressure regulators, and turbine flowmeters to prevent debris from jamming the mechanical seats or fouling sensors.Nozzle & Spray Protection: Strains fluids before they enter fine spray nozzles in cooling towers, agricultural systems, or washing lines, preventing blockages.2. Industry-Specific ApplicationsWater Treatment & Environmental Processing: Used as a coarse first-stage filter on raw river, lake, or sea water intakes to trap leaves, twigs, and plastic debris before downstream fine filtration.Power Plants & Cooling Utilities: Filters raw water circulating through large industrial cooling towers to keep algae and scale deposits out of delicate heat exchanger tubes.Petrochemical & Fuel Refining: Processes crude oil, diesel, lubricants, and heavy fuel oils to strain out coke particles, carbon buildup, and heavy sediments before refining.Chemical & Processing Lines: Strains raw chemical mixtures, aggressive solvents, and process fluids to catch unreacted catalyst solids or particulate clump formations.3. Selection Guide by Application StyleBatch Processes / Intermittent Lines: A Simplex Basket Filter (the type pictured in your previous turn) is ideal here. When the basket fills up, the process line can be paused momentarily while an operator uses the quick-opening swing bolts to clean out the basket.Continuous / 24/7 Operations: A Duplex Basket Filter is used instead. This dual-chamber design features an integrated changeover valve that routes fluid into the second chamber when the first one fills up, allowing continuous production without ever stopping the line.
Basket Filters Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
About Basket Filters
An industrial basket filter (also known as a basket strainer) is a heavy-duty pressure vessel housing designed to remove large quantities of solid particulates, debris, and pipe scale from high-volume fluid lines.

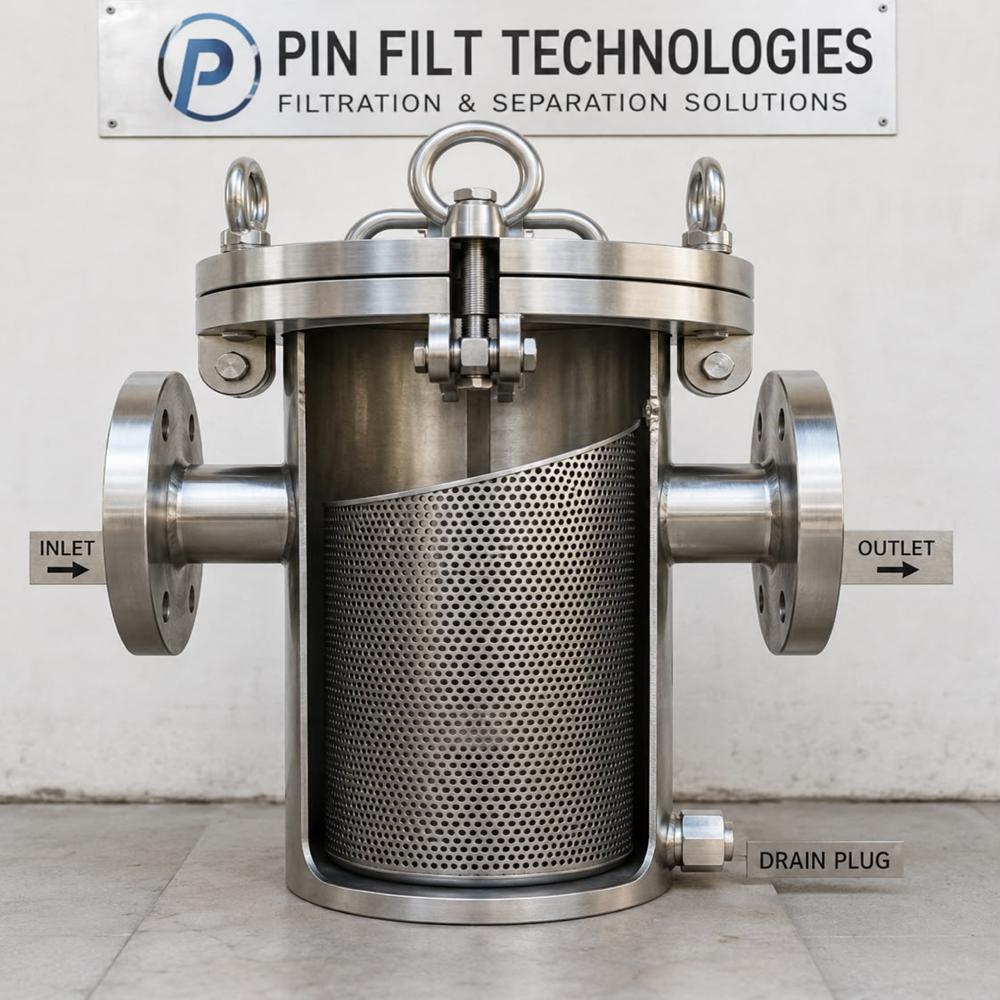

The cutaway image displays an premium stainless steel model manufactured by Pin Filt Technologies.
Key Architectural Components
- Inlet & Outlet Flanges: The fluid enters from the left-side flange (
INLET), passes directly through the internal basket, and exits through the right-side flange (OUTLET). These are industrial flanged connections designed to bolt directly into main pipelines. - Perforated Strainer Basket: The central, slanted cylinder is the core filter element. Fluid flows from the inside of this basket to the outside. Heavy debris is trapped inside the bottom of the basket, preventing it from migrating downstream.
- Quick-Opening Swing Bolt Cover: The top lid is secured with heavy-duty swing bolts and a central lifting eye. This design allows maintenance teams to quickly open the vessel, lift the basket out by its handle, clean out the trapped sludge, and slide it back in without using specialized tools.
- Drain Plug: Located at the absolute bottom right of the housing base. It allows complete drainage of the chamber's liquid contents before opening the lid for servicing, ensuring an environmentally safe and spill-free maintenance cycle.
Core Technical Specifications
- Material of Construction: Typically crafted from high-grade 304 or 316L Stainless Steel to maximize resistance to chemical corrosion, rust, and thermal stress.
- Filtration Levels: Baskets can be lined with ultra-fine stainless steel wire mesh over the perforated core to capture fine particles, or left as raw perforated sheets (typically 1mm to 5mm holes) for coarse straining.
- Flow Configuration: Simplex (single chamber, requiring line shutdown to clean) or Duplex (two identical chambers with a diverter valve, allowing continuous, non-stop cleaning during active production cycles).
