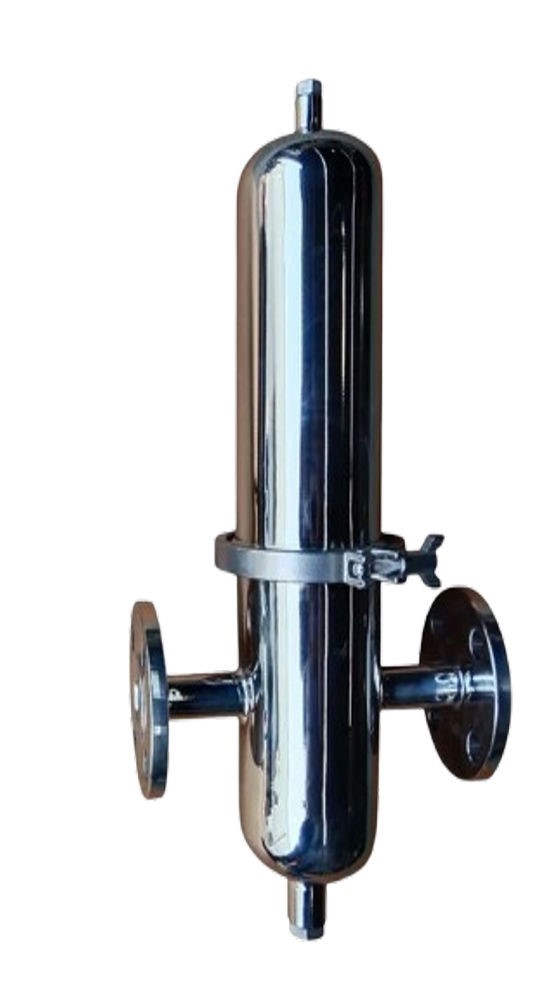

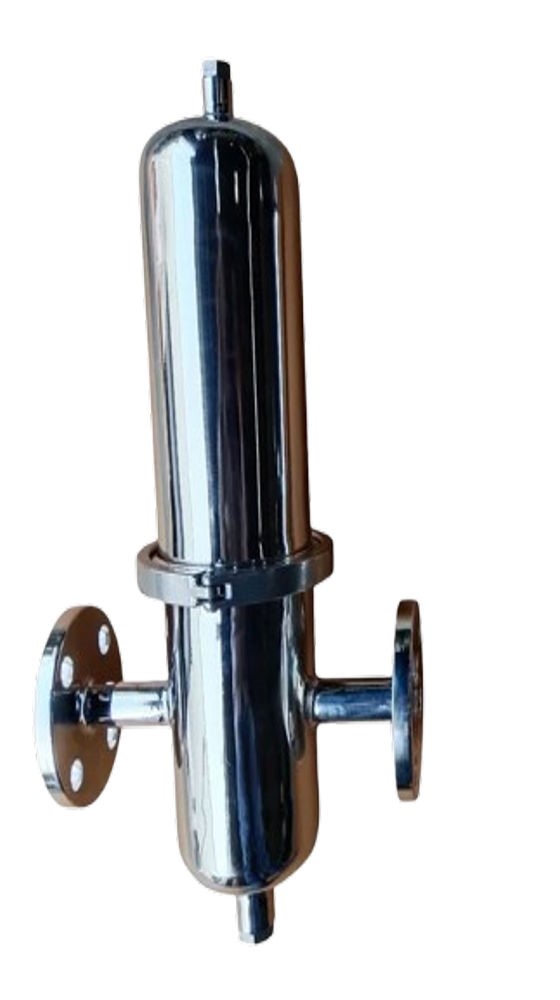

Send InquirySS Cartridge Housing Filter
Price 25000.0 INR/ Piece
MOQ : 1 Piece
SS Cartridge Housing Filter Specification
- Resistance
- Corrosion and chemical resistant
- Diameter
- Typically 4 to 8
- Efficiency (%)
- Up to 99.99% (depending on cartridge)
- Capacity
- Varies based on cartridge and flow rate, typically up to 5000 LPH
- Type
- Cartridge Housing Filter
- Material
- Stainless Steel (SS 304 or SS 316)
- Thickness
- Standard shell thickness: 1.5mm to 3mm
- Thermal Shrinkage
- Negligible (suitable for high temperature application)
- Working Temperature
- Up to 120C
- Application
- Water purification, pharmaceutical, food & beverage, chemicals, laboratory filtration
- Mounting Type
- Floor mounted or wall mounted
- Instrumentation
- Pressure gauge provision available
- Surface Treatment
- Passivated for corrosion resistance
- Finish
- Mirror polished or electro-polished
- Connection Type
- Flanged, threaded, or tri-clamp
- Compatible Cartridge Size
- 10", 20", 30", 40" (customizable)
- Gasket/Seal Material
- EPDM, PTFE, Silicon
- Inlet/Outlet Connection Size
- 0.5" to 3" (customizable)
- Pressure Rating
- Up to 6 bar
- No. of Cartridges
- Single or multiple (customizable)
SS Cartridge Housing Filter Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
SS Cartridge Housing Filter About
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Filter Housing |
| Housing Type | Single Cartridge / Multi-Cartridge |
| Material of Construction (MOC) | SS304 / SS316 / SS316L |
| Cartridge Capacity | 1, 3, 5, 7, 12, 21, 36 & 52 Round |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge OD | 2.5" / 2.75" |
| Filter Media Compatibility | PP, Pleated, Carbon, SS316, PTFE, PES, Nylon Cartridges |
| Maximum Working Pressure | 10 Bar (Higher Pressure Available on Request) |
| Test Pressure | 15 Bar |
| Operating Temperature | -10C to +150C (Depending on Seal Material) |
| Surface Finish | Mirror Polish / Matt Finish (180320 Grit) |
| Connection Type | BSP, NPT, Tri-Clamp, Flanged |
| Inlet & Outlet Size | " to 6" |
| Vent Connection | " BSP |
| Drain Connection | " to " BSP |
| Seal Material | Silicone, EPDM, Viton, PTFE |
| Closure Type | Swing Bolt / Clamp / Eye Bolt |
| Design Standard | ASME / GMP Design (Optional) |
Customizable and Versatile Filtration
This cartridge housing filter is engineered for flexibility, supporting single or multiple cartridges to suit various flow rates and qualities. The diameter (4-8 inches) and shell thickness (1.5-3 mm) are tailored according to specific needs, making the filter ideal for sensitive environments requiring meticulous contamination control. It also features multiple gasket/seal options for compatibility with different processing fluids.
Engineered for Durability and Hygiene
Constructed from SS 304 or SS 316 stainless steel, the filter housing is both corrosion and chemical resistant. The surface is passivated and mirror or electro-polished for superior hygiene and ease of cleaning. With negligible thermal shrinkage and operational stability up to 120C, it is suitable for high-temperature and demanding process applications.
FAQ's of SS Cartridge Housing Filter:
Q: How do I select the appropriate cartridge size and type for this SS Cartridge Housing Filter?
A: Choose the cartridge size (10", 20", 30", or 40") and type based on your flow rate requirements, level of filtration needed, and the type of contaminants to be removed. The housing supports single or multiple cartridges for capacity adjustments.Q: What connection options are available and how do they affect installation?
A: The housing offers flanged, threaded, or tri-clamp connections, allowing integration with various pipeline configurations. This flexibility ensures compatibility with your existing system, whether for new or retrofit projects.Q: When is it necessary to perform maintenance on the filter housing?
A: Maintenance frequency depends on application and contaminant load. However, regular inspection, cleaning, and replacement of filter cartridges are recommended to maintain optimal performance and prevent pressure drop or contamination.Q: Where can this SS Cartridge Housing Filter be installed?
A: It can be floor-mounted or wall-mounted, providing installation flexibility in constrained spaces. Its corrosion-resistant construction makes it suitable for harsh environments, including chemical plants, laboratories, and water treatment facilities.Q: What is the typical filtration efficiency and what benefits does this provide?
A: Efficiency can reach up to 99.99%, depending on the cartridge used. This high efficiency ensures removal of fine particulates, enhancing output quality and protecting downstream equipment in critical applications.Q: How does the surface treatment contribute to the filter's longevity and hygiene?
A: The mirror or electro-polished surface, coupled with passivation, minimizes surface roughness for easy cleaning and resists microbial growth or chemical corrosion, ensuring durability and regulatory compliance in sensitive processes.
