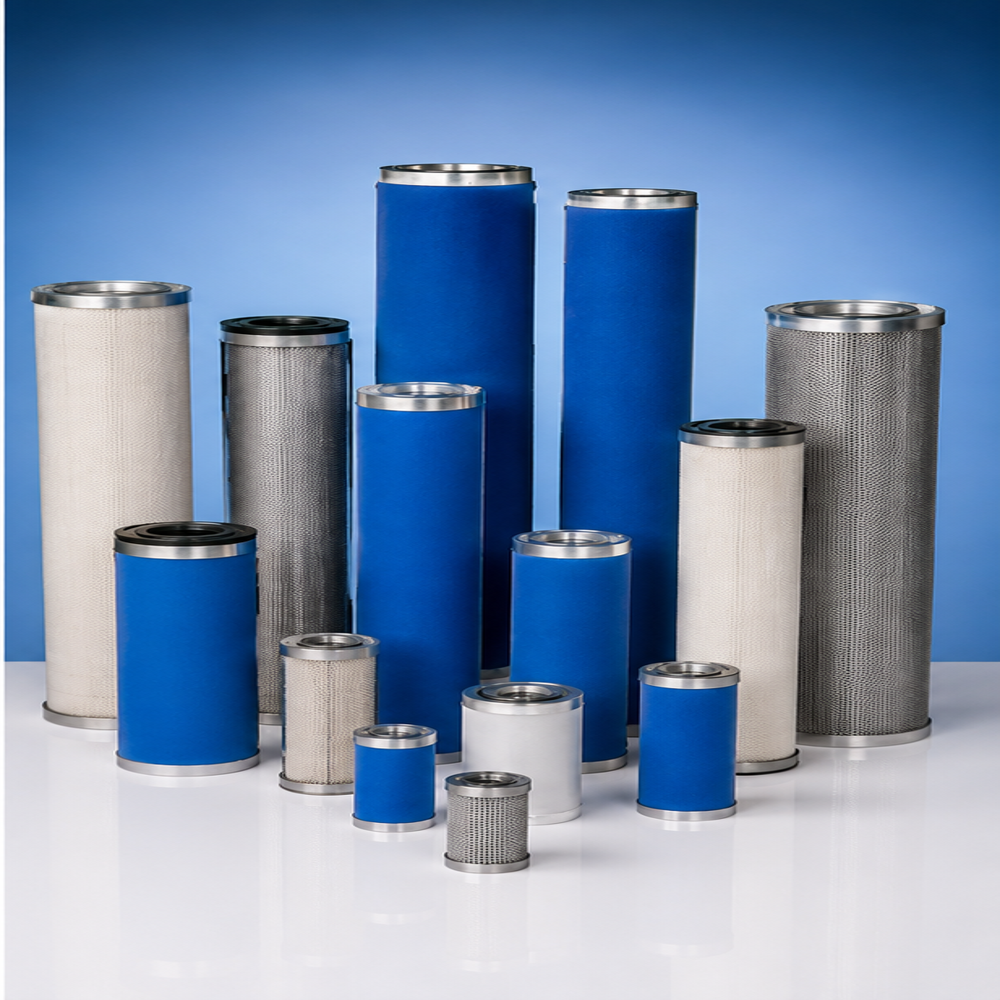

Send InquiryAIR FILTER ELEMENT
Price 2000.0 INR/ Piece
MOQ : 10 Pieces
AIR FILTER ELEMENT Specification
- Outlet Diameter
- 10-200 Inch (in)
- Inlet Diameter
- 10-200 Inch (in)
- Pressure
- 0.01 MICRON TO 25 MIC Bar
- Shape
- CYLINDRICAL
- Filter Rating
- 0.01 MICRON TO 25 MIC
- Usage
- Oil Aerosol and Moisture Removal,Downstream Equipment Protection,,Industrial Gas Purificationparticle removel, carbon removel,
- Material
- Carbon Steel, Nylon, Granular Activated Carbon, Polyester, PET, Fiber Glass, Metal, Cellulose, Microfiber, Glass Fiber, Polymers
- Size
- 10-200
- Height
- 10-200 Inch (in)
- Product Type
- compressed air filter elements,inline filter elements or line filters
- Diameter
- 10-200 Inch (in)
- Weight
- 10-200 Kilograms (kg)
- Color
- blue, yellow, off white , brown, or customised
- Efficiency
- 99
- Width
- 10-200 Inch (in)
- Application
- Compressed air precision filter elementsOil and moisture coalescingParticulate filtrationVapor and odor removalPneumatic machineryManufacturing plantsPaint sprayingFood & pharmaceutical processing
- Length
- 10-200 Inch (in)
- End Cap Style
- DOE, SOE, Threaded, Flanged
- Color
- Blue/White (standard options)
- Filtration Rating
- 0.01 micron to 50 micron
- Core Material
- Stainless Steel/Polypropylene
- Length Range
- 100 mm to 1000 mm
- Maximum Operating Pressure
- 6 bar to 10 bar
- Sealing Material
- Silicone, EPDM, NBR, Viton
AIR FILTER ELEMENT Trade Information
- Minimum Order Quantity
- 10 Pieces
- Payment Terms
- Cash Advance (CA), Cash on Delivery (COD), Cash in Advance (CID), Cheque
- Supply Ability
- 100 Pieces Per Month
- Delivery Time
- 7 Days
- Sample Available
- No
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- BUBBLE WRAPPING WITH BOX PACKING
- Main Export Market(s)
- Central America, Eastern Europe, Western Europe, Asia, Australia, North America, South America, Africa, Middle East
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE
AIR FILTER ELEMENT About
Core Technical Specifications
The technical parameters generally vary based on the filtration grade (indicated by color coding, e.g., red for pre-filters/coalescers and white for fine or activated carbon stages):
- Filtration Grades / Ratings:
- Pre-Filter / Particulate Stage: 1 to 3 microns (removes larger bulk liquids and dust).
- Coalescing / High-Efficiency Stage: 0.01 to 0.1 micron (separates liquid oil mist and fine aerosols).
- Activated Carbon Stage: 0.003 to 0.01 micron (removes hydrocarbon vapors and oil odors).
- Filtration Efficiency: Typically 99% to 99.99% depending on the specific model and micron classification.
- Filter Media Material: High-density borosilicate glass fiber (microglass), polypropylene, or multi-layered composite fiber.
- End Cap & Support Material: Corrosion-resistant molded polyurethane, aluminum, or stainless steel mesh structures for high-pressure differential stability.
- Operating Flow Capacity: Scalable across standard industrial systems, typically ranging from 10 to 1,000+ CFM (or 5 to 5,000 m/hr).
- Maximum Working Pressure: Standard lines handle up to 16 to 20 bar approx. 232290 PSI).
- Maximum Operating Temperature: Generally up to 60C to 80C (140F to 176F) depending on sealing O-ring specifications.
- Outer Sleeve Foam / Sock: Features a colored outer foam sleeve (red/white) that facilitates pre-separation and prevents the re-entrainment of filtered oil droplets back into the airflow.
These elements serve as direct replacements for major compressed air housing brands such as Hiross, Domnick Hunter, Ultra filter, parker, beco, Elgi, Donaldson,Zander, and Atlas Copco.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Filter Cartridges Category
HYDRALIC FILTER
Price 2500.0 INR / Piece
Minimum Order Quantity : 5 Pieces
Color : Silver / Metallic,White,Black,Yellow,Red / White Pattern
Usage : Suction Line (Strainers),HighPressure Line,LowPressure Return Line
Product Type : SpinOn Filter Canisters,Pleated Cartridge Elements,Suction Strainers / Screen Elements,Metal Mesh / Inner Core Elements
Width : 101000 Millimeter (mm)
PP Pleated cartridge
Price 2500.00 INR / Pack
Minimum Order Quantity : 1 Piece
Color : white and off white
Usage : fine particle clarification, prefiltration, and absoluterated liquid polishing,,PreFiltration for Reverse Osmosis (RO),Absolute Polishing,Sterile Stream Safeguarding,Food and Beverage,Pharmaceuticals & Biotechnology.Microelectronics & SemiconductorsChemicals, Paints, & Coatings,Oil, Gas, & Heavy Industry
Product Type : liquid filtration consumables,Pleated Microfiltration Cartridge Filter .,Polypropylene (PP) cartridges,PTFE membranesCode 7 profile (features a 226 double Oring design with locking bayonet tabs and a top aligning fin)
Width : 101000 Millimeter (mm)

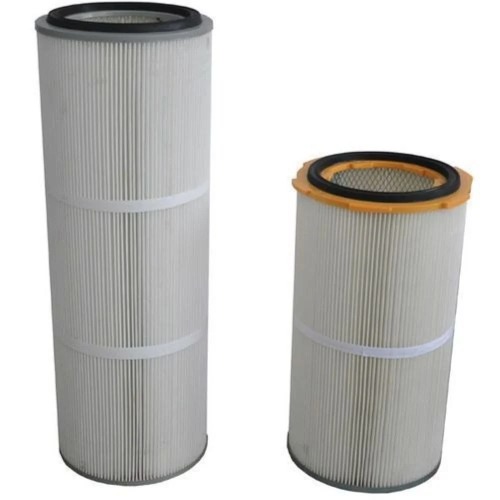

DUST COLLECTION FILTERS
Price 8000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Color : WHITE OF WHITE OR CUSTOMISED
Usage : Shot Blasting & Metalworking,Powder Coating & Painting,,Pharmaceuticals & Chemicals,Cement & Construction,Food & AgricultureMatching Usage with Filter Media Types,PulseJet Cleaning,
Product Type : 1. Classification by Geometric Shape,2. Classification by Mounting & Connection Style,3. Classification by Material Performance,brand of dust collector system,
Width : 101000 Millimeter (mm)
FIBER GALSS FILTER ELEMENT
Price 5000.00 INR / Pack
Minimum Order Quantity : 1 Piece
Color : BLUE, YELLOW, WHITE ETC
Usage : Compressed Air and Gas Coalescing,Industrial Oil and Hydraulic FiltrationEnvironmental and Air Pollution Monitoring,Laboratory Prefiltration,SubMicron Capture,Chemical Inertness,High DirtHolding Capacity,.gas/air or liquids
Product Type : Cylindrical/Cartridge ElementsPleated Filter Cartridges,Flat Disc Membranes / Sheets:,,Inline Compressed Air Filter Elements
Width : 51000 Millimeter (mm)
