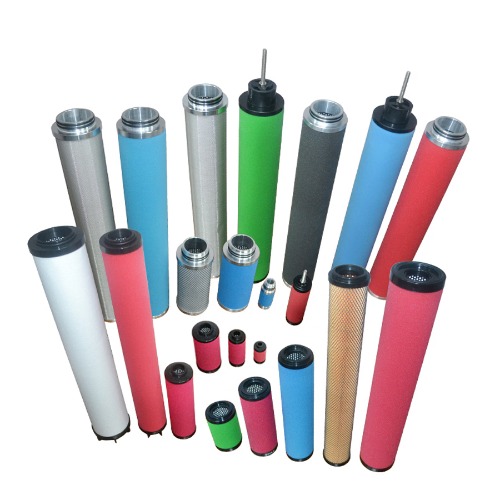

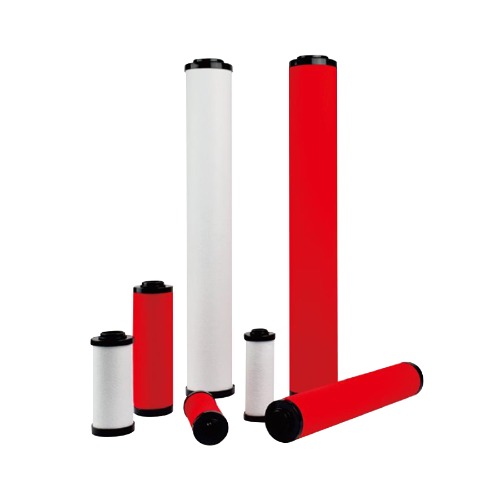

Send InquiryFIBER GALSS FILTER ELEMENT
Price 5000.00 INR/ Pack
MOQ : 1 Piece
FIBER GALSS FILTER ELEMENT Specification
- Usage
- Compressed Air and Gas Coalescing,Industrial Oil and Hydraulic FiltrationEnvironmental and Air Pollution Monitoring,Laboratory Pre-filtration,Sub-Micron Capture,Chemical Inertness,High Dirt-Holding Capacity,.gas/air or liquids
- Size
- 5-1000
- Height
- 5-1000 Millimeter (mm)
- Product Type
- Cylindrical/Cartridge ElementsPleated Filter Cartridges,Flat Disc Membranes / Sheets:,,Inline Compressed Air Filter Elements
- Weight
- 5-1000 Kilograms (kg)
- Color
- BLUE, YELLOW, WHITE ETC
- Length
- 5-1000 Millimeter (mm)
- Width
- 5-1000 Millimeter (mm)
FIBER GALSS FILTER ELEMENT Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cheque, Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 10 Pieces Per Day
- Delivery Time
- 3 Days
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- BOX PACKING
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE
About FIBER GALSS FILTER ELEMENT
1. Sourcing Specifications & Operational Bounds
When process engineers or procurement managers source replacement microglass cores from B2B marketplaces like IndiaMART or Tradeindia, elements are strictly configured using exact physical and mechanical performance metrics:
| Engineering Parameter | Standard Industrial Specification Range |
|---|---|
| Absolute Micron Ratings | From ultra-fine 0.01 microns (for gas/air lines) up to a precise 1 to 20 microns (for high-pressure oil loops). |
| Structural Design Styles | Wrap-Around Cylindrical (Coalescing style) or Pleated Multi-Layer Star Geometry (to maximize dirt surface area). |
| Beta Stability Rating | Exceptional High Beta Ratios (\(\beta_{x} \geq 200\) to \(\beta_{x} \geq 1000\)), guaranteeing up to 99.9% filtration consistency. |
| Max Pressure Envelope | Low-pressure systems at 6 to 10 Bar up to high-collapse hydraulic lines withstanding 210 to 420 Bar. |
| Thermal Operating Limit | Rugged continuous performance up to +90C to +120C. |
| Fluid Adaptability | Universally compatible with mineral oils, synthetic lubricants, water-glycol streams, and aggressive chemical gases. |
2. Physical Sizes (Min to Max)
- Absolute Minimum Size: 12 mm Width 50 mm Length. Scaled for miniature pneumatic logic components, emission gas analyzer test kits, and precision lab sampling loops. [1]
- Absolute Maximum Size: 6.0 inches (152 mm) Width 40 to 60 inches (1,524 mm) Length. Deployed as heavy-duty, high-capacity process cores inside power plants and gas processing hubs.
- Most Common Industrial Footprints:
- Standard Liquid Elements: 2.5" to 2.7" OD with standard lengths of 10", 20", or 30".
- Hydraulic Cartridges: 3" to 4" OD with structural lengths tracking between 8" to 15".
3. Structural Media Variants (Product Types)
- Pleated Microglass Elements: The filtration media is folded into tightly compressed pleats. Supported by internal steel mesh cages and heavy end caps, this design offers massive surface areas and is the baseline choice for high-pressure hydraulic loops.
- Coalescing Glass Fiber Elements: Formed as thick, seamless cylindrical wrap-around tubes. Deployed exclusively in gas and compressed air circuits to push micro-fine oil mist aerosols to merge into heavy droplets that drain away.
- String Wound Glass Fiber Elements: Continuous glass strands wrapped tightly over a solid [Stainless Steel (SS304/316) core tube]. Excellent for processing high-temperature fluids and corrosive acids where standard plastics melt.
4. Why Fiberglass Outperforms Cellulose (Paper) & Mesh
- Exceptional Dirt-Holding Capacity: Unlike paper or wire meshes which clog along a single plane, fiberglass is a true depth media. Debris is trapped across the entire thickness of the element walls, delivering up to 4 times the operational lifespan of a standard cellulose core.
- Zero Fiber Migration: Premium microglass layers are locked together using inert resin binders and an outer protective mesh wrap. This architecture ensures no loose glass fibers break away to damage downstream machine parts.
- Low Pressure Drops: The high structural porosity of microglass ensures minimal initial resistance to fluid flow, allowing facilities to maintain target line velocities while running finer micron grades.
5. Critical Applications
- High-Pressure Hydraulic Systems: Protecting tight-tolerance servo-valves, automated CNC pistons, and variable displacement pumps from internal wear particles.
- Compressed Gas & Mainline Air Conditioning: Deployed inline downstream from compressors to clean moisture mist and gaseous oil hydrocarbons out of plant air drops.
- Turbine & Gearbox Lubrication Circuits: Continually clarifying high-velocity bearing lube oil networks in thermal power plants and maritime engine rooms.
Are you seeking to source a replacement fiberglass core to resolve an early clogging problem with an existing paper filter, or do you have a specific part number from brands like Parker, Hydac, or Rexroth that you need to cross-reference?
Let me know the fluid medium and your target pipe size, and I can provide exact sizing details.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Filter Cartridges Category
HYDRALIC FILTER
Price 2500.0 INR / Piece
Minimum Order Quantity : 5 Pieces
Application : Heavy Construction Equipment,.Agricultural Machinery.Manufacturing Plants, Material Handling & Logistics,Lubricating Oil Circuits,pump intake, pressure side, or return line
Diameter : 1010000 Millimeter (mm)
Height : 101000 Millimeter (mm)
Length : 101000 Millimeter (mm)
DUST COLLECTION FILTERS
Price 8000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Application : 1. Thermal Cutting & Metal Fabrication,2. Process Manufacturing & Powder Handling,3. Heavy Materials & Process Industry Vents,4. Specialized Equipment Adaptations,
Diameter : 101000 Millimeter (mm)
Height : 101000 Millimeter (mm)
Length : 101000 Millimeter (mm)

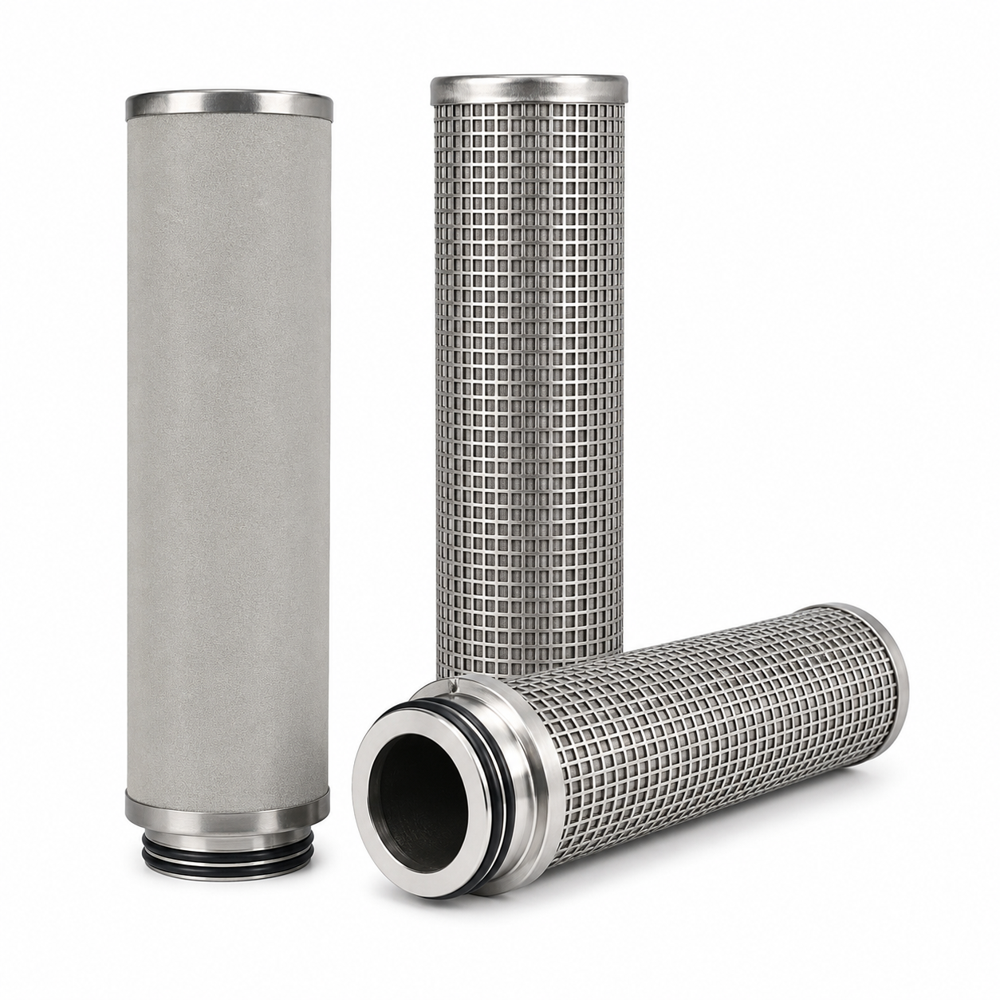

STEAM FILTER CARTRADGES
