Send InquiryPP Pleated cartridge
Price 2500.00 INR/ Pack
MOQ : 1 Piece
PP Pleated cartridge Specification
- Usage
- fine particle clarification, pre-filtration, and absolute-rated liquid polishing,,Pre-Filtration for Reverse Osmosis (RO),Absolute Polishing,Sterile Stream Safeguarding,Food and Beverage,Pharmaceuticals & Biotechnology.Microelectronics & SemiconductorsChemicals, Paints, & Coatings,Oil, Gas, & Heavy Industry
- Size
- 10-1000
- Height
- 10-1000 Millimeter (mm)
- Product Type
- liquid filtration consumables,Pleated Microfiltration Cartridge Filter .,Polypropylene (PP) cartridges,PTFE membranesCode 7 profile (features a 226 double O-ring design with locking bayonet tabs and a top aligning fin)
- Weight
- 10-1000 Kilograms (kg)
- Color
- white and off white
- Width
- 10-1000 Millimeter (mm)
- Length
- 10-1000 Millimeter (mm)
PP Pleated cartridge Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 25 Pieces Per Day
- Delivery Time
- 3 Days
- Sample Available
- No
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- box packing
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Africa, Eastern Europe, Western Europe, Middle East
- Main Domestic Market
- All India
- Certifications
- test certificate
PP Pleated cartridge About
Material of Construction
- Filter Media: 100% Pure Virgin Polypropylene Microfiber Membrane
- Inner Core / Outer Support Cage: Polypropylene
- End Caps & Adapters: Polypropylene (thermally bonded, adhesive-free construction)
- Gaskets / O-Rings: Silicone, EPDM, Nitrile (Buna-N), or Viton
Dimensions & Sizing
- Standard Lengths: 10 inches, 20 inches, 30 inches, 40 inches (Custom sizes range up to 60 inches)
- Outer Diameter (OD): Standard 69 mm (approx. 2.7 inches) or Big Blue (BB) versions at 4.5 inches
- Inner Diameter (ID): 28 mm to 30 mm
Filtration Performance
- Micron Ratings: Available from 0.1 m, 0.22 m, 0.45 m, 1 m, 5 m, 10 m, 20 m up to 100 m
- Filtration Efficiency: Available in both Nominal (9095%) and Absolute (99.9% / Beta 5000) ratings
- Filtration Surface Area: Over 0.5 m per 10-inch element, offering much higher dirt-holding capacity than standard depth or wound cartridges.
Operating Limits
- Maximum Operating Temperature: 60C to 80C (140F to 176F) depending on continuous thermal load [1, 2, 3]
- Maximum Differential Pressure:
- Forward direction: 4.2 bar (60 psi) at 21C
- Reverse direction: 2.1 bar (30 psi) at 21C
- Chemical Compatibility: Highly inert; pH broad range performance from 1 to 14.
End Connections (Configuration)

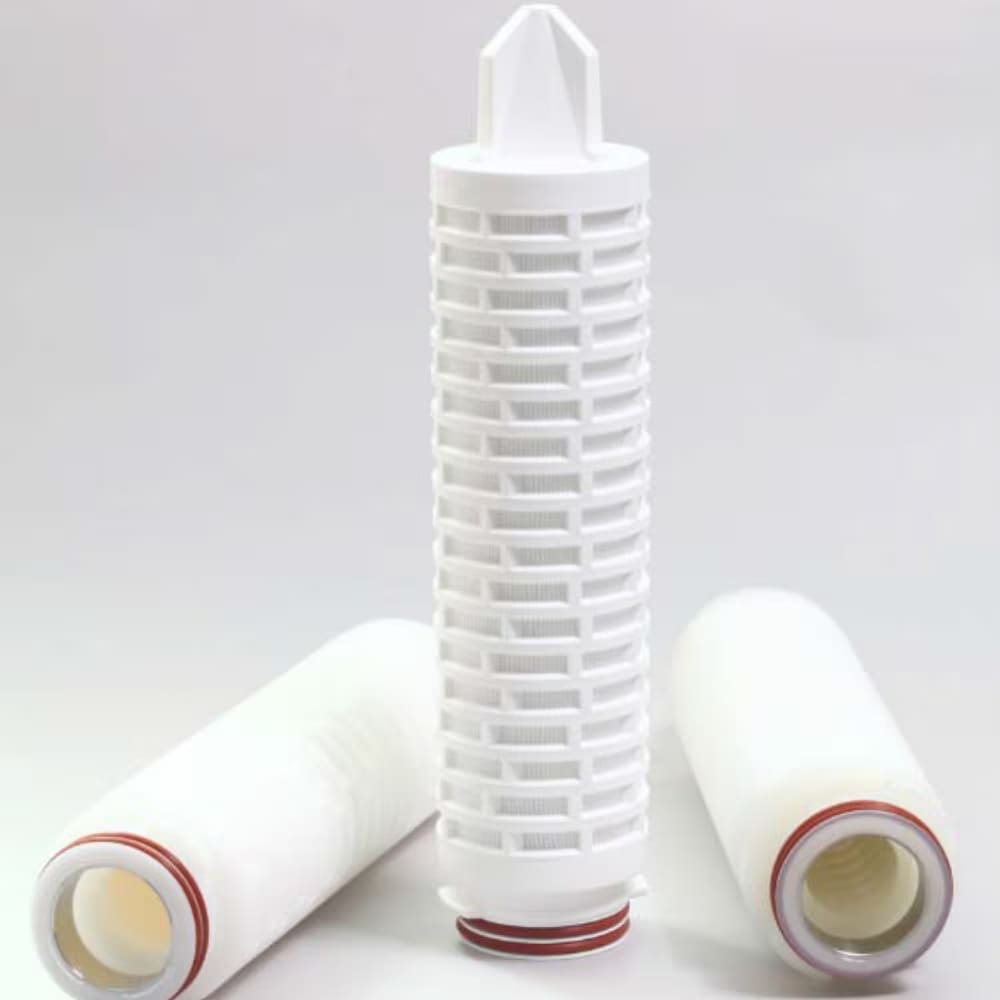

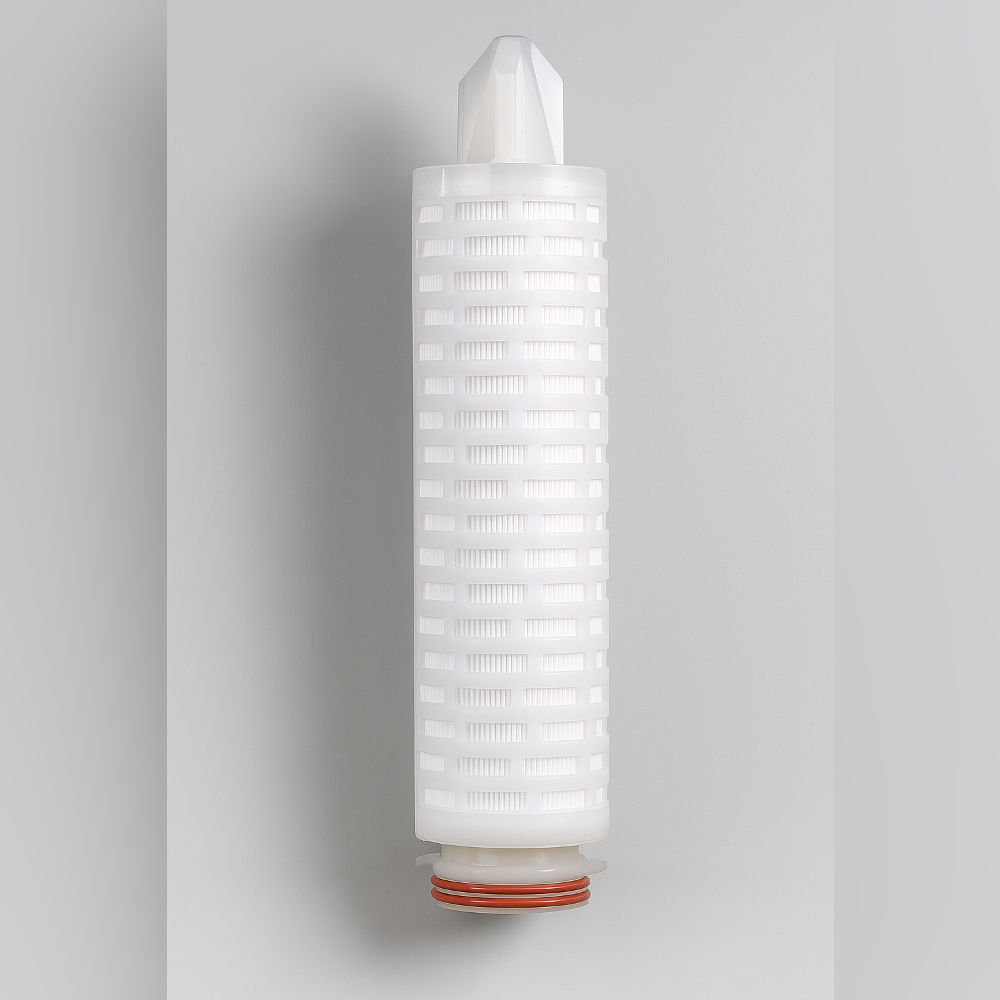

The image specifically displays a Single Open End (SOE) design utilizing a Code 7 (226 O-ring with a locking bayonet/fin) style configuration. Common industry options include:
- DOE: Double Open End (flat gaskets on both sides)
- Code 7: 226 O-ring design with locking tabs and a top fin
- Code 3 / Code 8: 222 O-ring design with a flat end or spear
