INDUSTRIAL FILTER ELEMENT

About INDUSTRIAL FILTER ELEMENT

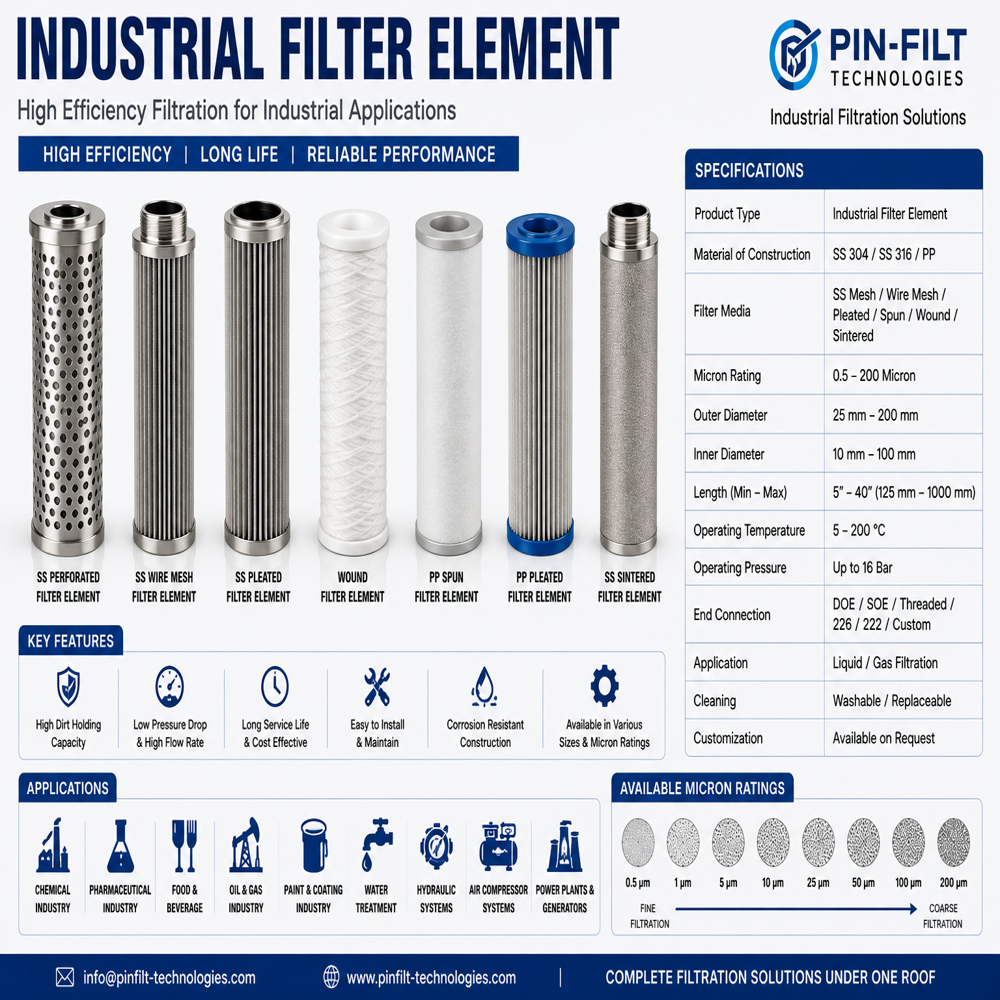

• Sintered Metal Elements: Fabricated by fusing layers of woven wire mesh or metal powder under high heat. Usually made of [316 Stainless Steel (SS 316)](micron rating for gopani filter element 30*2.5 ss sintered), these elements handle extreme differential pressures (up to 400 Bar)  and temperatures. They are highly cleanable and reusable.
• Pleated Cartridges: Made of cellulose, synthetic polymer, or wire mesh folded into a star shape. This geometry maximizes the filtration surface area within a compact boundary, providing high dirt-holding capacity and low initial pressure drops.
• Spun Bonded & Wound Cartridges: Depth filter elements made from polypropylene (PP) or cotton fibers. They feature a graded density structure (coarser on the outside, finer on the inside) to catch various particle sizes throughout the element wall.

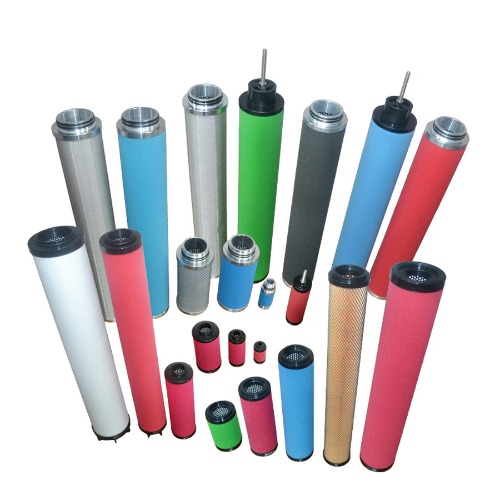

• Coalescing & Separator Elements: Multi-layered fiber matrix cores designed to force tiny liquid aerosols suspended in a gas stream to merge into larger droplets, which then drain away. These are critical in [compressed air and carbon filtering networks].

• End Cap Configurations:
  • DOE (Double Open End): Flat gaskets on both ends.
  • SOE (Single Open End) / Code 7: Features a closed top and a double O-ring base with locking bayonet tabs [1/2 flange end ss 316 filter housing with code 7 pp cartridges FSP technologies price ?].
  • Code 3 / Code 8: Alternative O-ring base styles matching specific housing alignment guides.
• Micron Ratings: Ranging from coarse depth ratings down to absolute sub-micron or HEPA levels (0.01 to 100+ microns).
• Physical Dimensions: Standard length increments of 10", 20", 30", or 40" matching diameter profiles like standard 2.5" or large-diameter 4.5" (Big Blue) cartridges.

• Compressed Air & Gas Processing: Installed in mainline filters to pull moisture, oil aerosols, and rust particles out of air lines before they reach pneumatic tools or instruments [compressor service provider in maharashtra].
• Hydraulic & Lubrication Systems: Placed inline or on tank breathers to remove micro-abrasives from high-pressure oil lines, protecting expensive valves, servos, and pumps [July 08, 2026 @ 17:23 PM, Tue, January 13, 2026 @ 21:21 PM].
• Water & Fluid Treatment: Deployed as spun PP or [sintered stainless cartridges](micron rating for gopani filter element 30*2.5 ss sintered) in chemical processing, food manufacturing, and reverse osmosis pre-filtration loops [1/2 flange end ss 316 filter housing with code 7 pp cartridges FSP technologies price ?].
