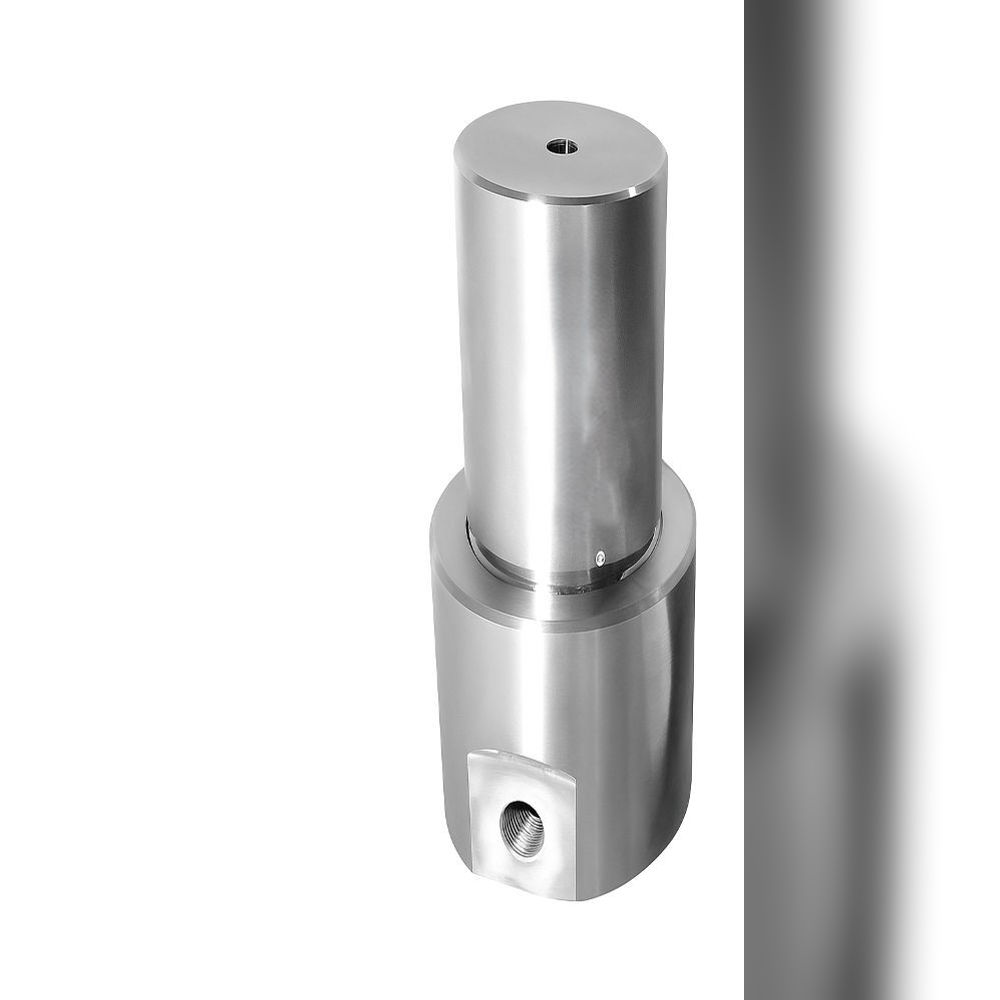

Send InquiryHIGH PRESSURE FILTER
Price 35000.0 INR/ Piece
MOQ : 1 Piece
HIGH PRESSURE FILTER Specification
- Efficiency (%)
- 99.9%
- Diameter
- 65 mm
- Capacity
- 50 to 100 LPM (Liters per Minute)
- Resistance
- High resistance to corrosion and pressure
- Type
- High Pressure Filter
- Material
- Stainless Steel
- Thickness
- 2-5 mm (filter element)
- Thermal Shrinkage
- <1% at 120C
- Working Temperature
- -20C to 120C
- Application
- Hydraulic systems, industrial filtration, heavy machinery
- Filtration Accuracy
- 5 to 50 micron
- Mounting
- Inline
- End Connection
- Threaded (BSP/NPT)
- Sealing Type
- Viton O-rings
- Surface Finish
- Electropolished
- Element Replaceability
- Yes, replaceable element
- Max Operating Pressure
- Up to 420 bar (6000 psi)
HIGH PRESSURE FILTER Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
About HIGH PRESSURE FILTER
| Parameter | Specification |
|---|---|
| Product Name | High Pressure Filter |
| Filter Type | Inline High Pressure Filter |
| Application | Hydraulic Oil, Lubricating Oil, Fuel, Process Fluids |
| Housing Material | Carbon Steel / SS304 / SS316 / SS316L |
| Filter Element Material | Micro Glass Fiber / SS316 Wire Mesh / SS316L Sintered |
| Filtration Rating | 1, 3, 5, 10, 20, 25, 40, 50, 100 Micron |
| Filtration Efficiency | 200 (99.5%) |
| Maximum Working Pressure | Up to 420 Bar |
| Burst Pressure | Up to 630 Bar |
| Operating Temperature | -20C to +120C |
| Differential Pressure | 0.22 Bar |
| Flow Direction | Inside to Outside |
| Connection Type | BSP, NPT, SAE Flange, DIN Flange |
| Connection Size | " to 3" |
| Seal Material | NBR, Viton, EPDM, PTFE |
| Indicator | Optional Differential Pressure Indicator |
