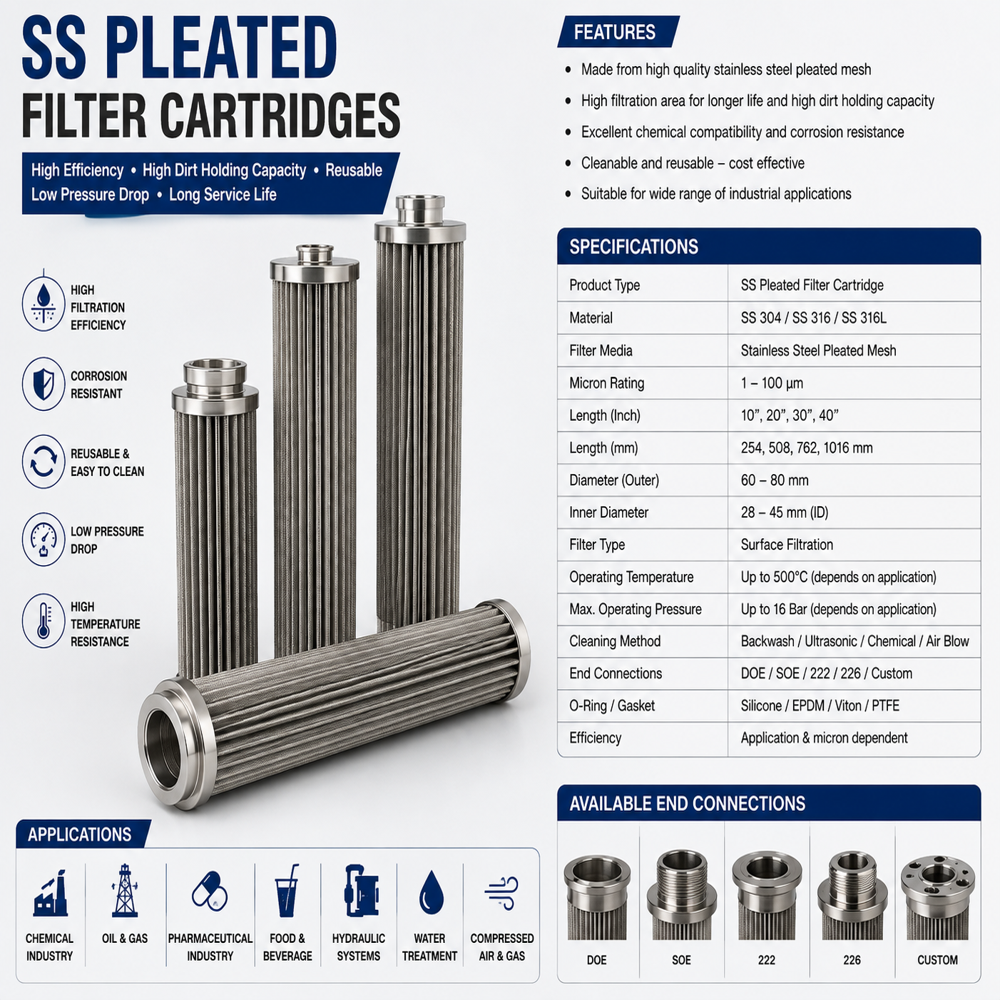

Send InquirySs Pleated Filter Cartridges
Price 6500.0 INR/ Pack
MOQ : 1 Piece
Ss Pleated Filter Cartridges Specification
- Shape
- Cylindrical
- Filter Media
- Other
- Usage
- Liquid & gas filtration Removal of suspended particles and contaminants Process water filtration Oil & hydraulic fluid filtration Chemical & petrochemical filtration Pharmaceutical & biotech applications Food & beverage processing Compressed air & gas filtration High-temperature filtration Pre-filtration and polishing filtration Reusable filtration where cleaning and backwashing are required Protection of pumps, valves, membranes and downstream equipment
- Material
- Metal
- Height
- 250 TO 1020 Millimeter (mm)
- Diameter
- 60 TO 80 Millimeter (mm)
- Product Type
- SS Pleated Filter Cartridge
- Weight
- 0.5 TO 3 Kilograms (kg)
- Efficiency
- 99%
- Color
- SILVER
- Width
- 60 TO 80 Millimeter (mm)
- Length
- 10 TO 40 Inch (in)
- Application
- Chemical processing, oil & gas, pharmaceuticals, food & beverage, hydraulic systems, process water, compressed air and high-temperature filtration
Ss Pleated Filter Cartridges Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
Ss Pleated Filter Cartridges About
Stainless Steel (SS) Pleated Filter Cartridges are reusable, high-surface-area filter elements engineered out of precision stainless steel woven wire mesh or sintered fiber felt. While standard cylindrical wrap-type metal elements are smooth, a pleated design folds the metallic media inward and outward, expanding the total filtration surface area by 3 to 4 times. This expansion allows the cartridge to maintain higher flow rates and significantly boost its overall dirt-holding capacity before requiring cleaning.
Structural Anatomy & Custom Specs
An industrial-grade SS pleated cartridge is manufactured utilizing no glue or resin binders, keeping the pathway completely chemically pure. They are typically composed of:
- The Pleated Filtration Layer: Made using multiple layers of precision SS 304 or SS 316L wire mesh. For extreme applications, a middle stainless-steel sintered felt layer is sandwiched between an upstream protective layer and a downstream drainage support layer.
- Inner Support Core & Outer Cage: A heavy-gauge, perforated stainless steel inner core stops the pleats from collapsing inward under severe differential pressure. An optional external perforated sleeve protects the pleats during physical handling. [1]
- Welded End Caps: The cartridge end caps are completely TIG-welded to the pleated media pack, eliminating any chance of particle bypass. They can be ordered with custom adapter configurations:
- DOE: Double Open End (flat gaskets at both ends).
- Code 7: 226 O-ring with 2 locking ears/bayonet tabs.
- Code 3: 222 double O-ring with a flat end cap.
- Threaded Ends: Male/Female BSP or NPT threaded connectors for highly vibrating machinery lines.
Technical Operating Thresholds
| Specification Dimension | Standard Parameter Limit |
|---|---|
| Material of Construction (MOC) | SS 304 / SS 316 / SS 316L (Highest corrosion resistance) |
| Pore Size / Micron Rating | Very broad span starting from 1 micron up to 850+ microns |
| Standard Length Sizes | Available globally in standard 10", 20", 30", and 40" segments |
| Outer Diameter (OD) | Standard sizes include 60 mm (2.36") or 65 mm (2.5" OD) |
| Max Working Temperature | Tolerates continuous thermal exposures up to 200C (392F) |
| Max Differential Pressure | Capable of operating safely up to 6 to 20+ Bar depending on core rigidity |
| Gasket Material Selection | Silicone, EPDM, Viton, Buna-N, or solid PTFE |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Filter Cartridges Category

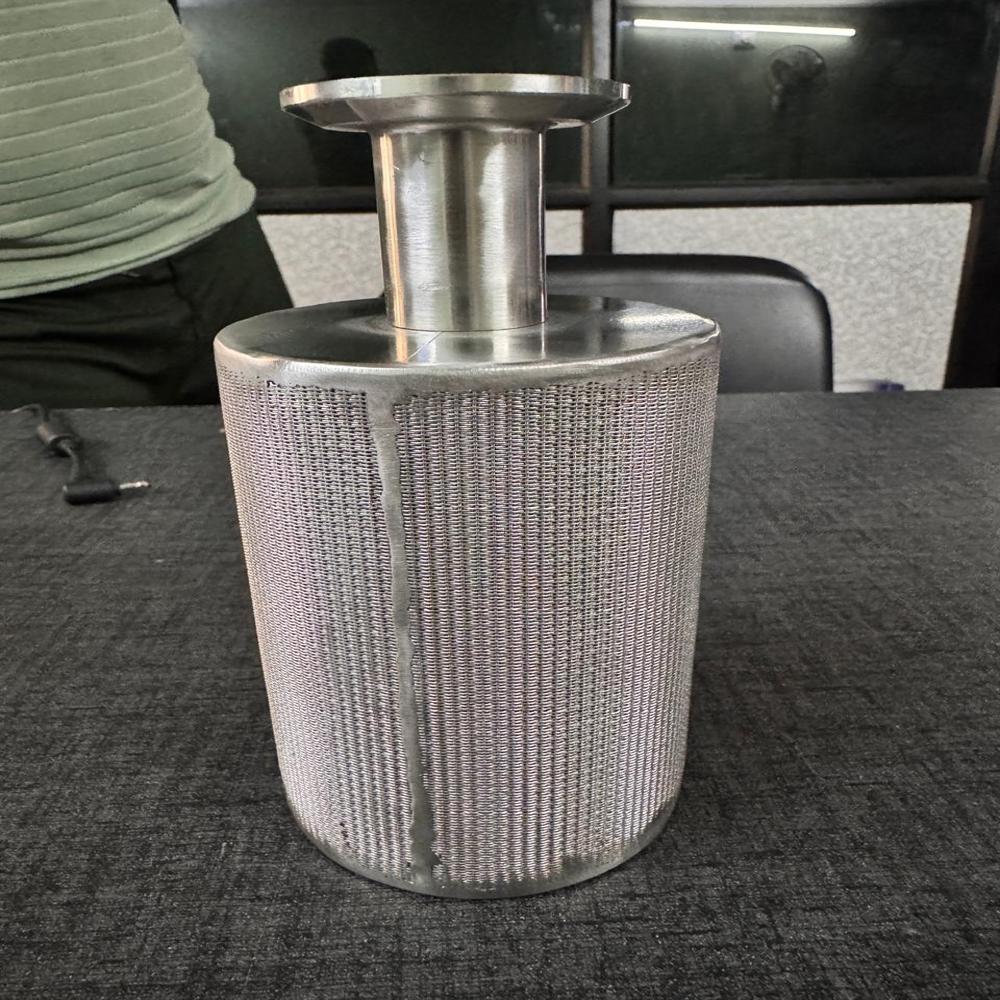

Industrial Vent SS Filter
