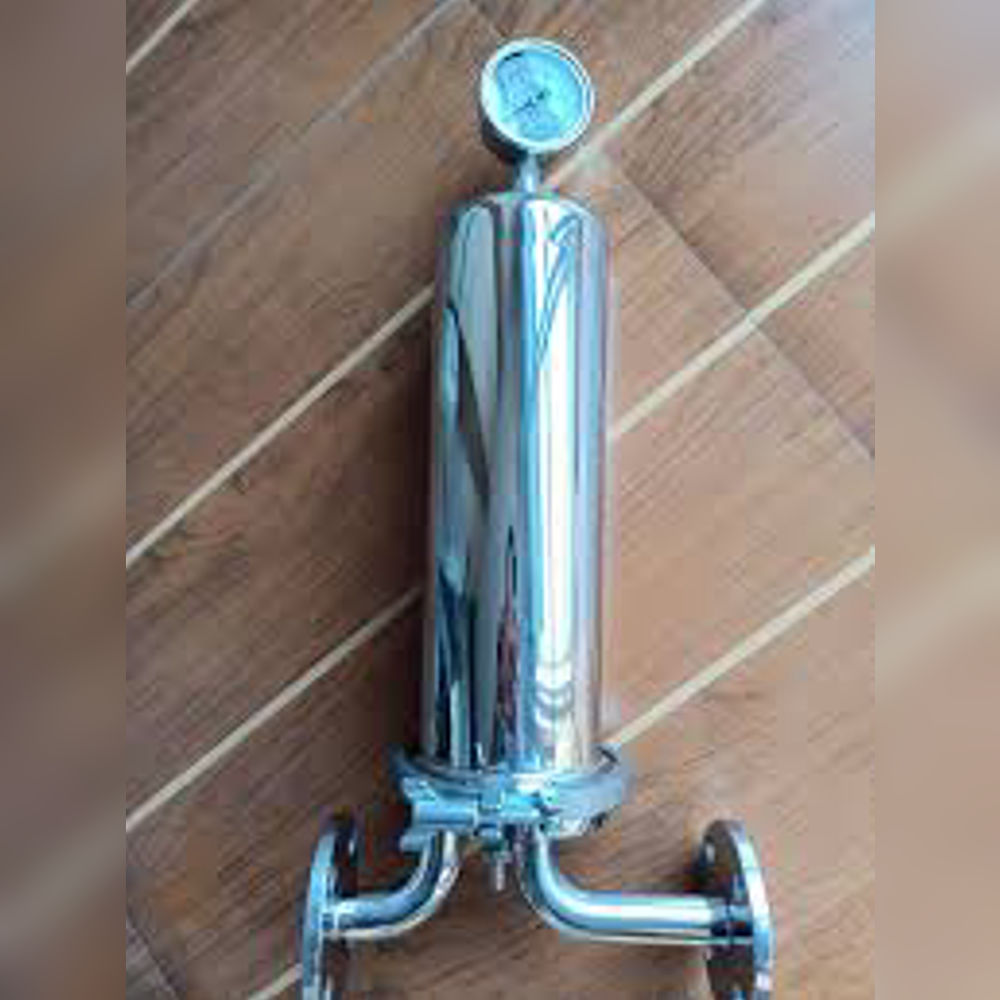

Send InquirySS 316 HOUSING FILTERS
Price 25000.0 INR/ Piece
MOQ : 1 Piece
SS 316 HOUSING FILTERS Specification
- Pore Size
- Customizable as per cartridge selection
- Pressure
- Design pressure up to 10 bar
- Shape
- Cylindrical vertical
- Filter Rating
- 0.2 to 100 micron (depends on installed cartridge)
- Filter Media
- Depends on cartridge - PP, SS, PES, etc.
- Outlet Diameter
- 1 to 2 (flanged or threaded connection)
- Sealing
- Silicone, EPDM, Viton options
- Inlet Diameter
- 1 to 2 (flanged or threaded connection)
- Product Type
- SS 316 Housing Filter
- Material
- Stainless Steel 316
- Type
- Inline filter housing
- Cartridge Style
- DOE (Double Open End) or SOE (Single Open End)
- Diameter
- Available from 2 to 8 (custom options possible)
- Efficiency
- Up to 99.9% (with appropriate cartridge)
- Application
- Water filtration, chemical filtration, pharma, beverage industry
- Gasket Material
- Silicone/Viton/PTFE/EPDM
- Mounting
- Skid or wall-mountable
- Air Vent/Valve
- Provided (manual or automatic)
- Corrosion Resistance
- Excellent due to SS316 construction
- Drain Port
- Included with ball valve
- Housing Capacity
- 1/3/5/7/9/12/21/30 round (as per model)
- Operating Temperature
- Upto 150C
- Serviceability
- Easy-open clamp for cartridge replacement
- End Connections
- Tri-clamp, flange, or threaded
- Design Compliance
- ASME/SS fabrication standards
- Finish
- Mirror polished (inside and outside)
- Suitable Fluids
- Water, solvents, chemicals, compressed air
SS 316 HOUSING FILTERS Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
About SS 316 HOUSING FILTERS
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Filter Housing |
| Housing Type | Single Cartridge / Multi-Cartridge |
| Material of Construction (MOC) | SS304 / SS316 / SS316L |
| Cartridge Capacity | 1, 3, 5, 7, 12, 21, 36 & 52 Round |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge OD | 2.5" / 2.75" |
| Filter Media Compatibility | PP, Pleated, Carbon, SS316, PTFE, PES, Nylon Cartridges |
| Maximum Working Pressure | 10 Bar (Higher Pressure Available on Request) |
| Test Pressure | 15 Bar |
| Operating Temperature | -10C to +150C (Depending on Seal Material) |
| Surface Finish | Mirror Polish / Matt Finish (180320 Grit) |
| Connection Type | BSP, NPT, Tri-Clamp, Flanged |
| Inlet & Outlet Size | " to 6" |
| Vent Connection | " BSP |
| Drain Connection | " to " BSP |
| Seal Material | Silicone, EPDM, Viton, PTFE |
| Closure Type | Swing Bolt / Clamp / Eye Bolt |
| Design Standard | ASME / GMP Design (Optional) |
