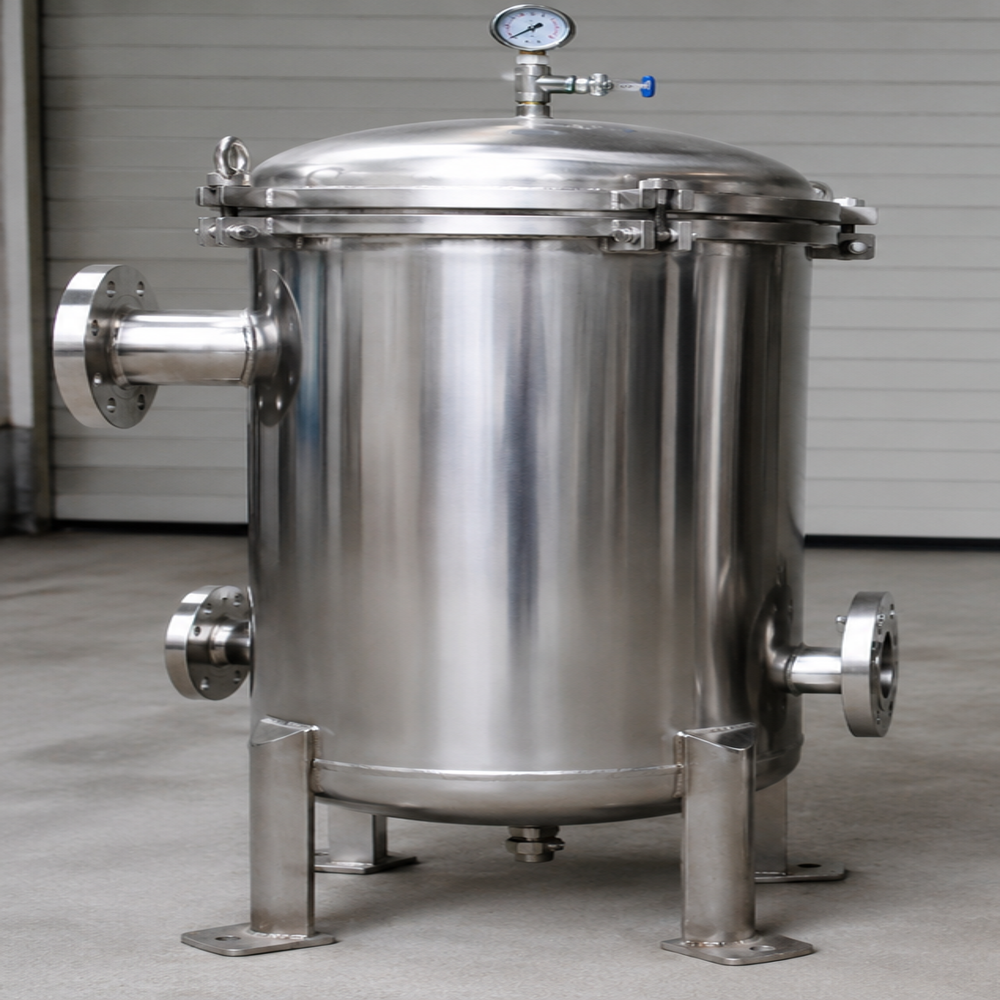

Send InquirySand Filter
Price 85000.0 INR/ Piece
MOQ : 1 Piece
Sand Filter Specification
- Capacity
- 1000 LPH to 100000 LPH
- Efficiency (%)
- 98%
- Diameter
- 400 mm to 2000 mm
- Resistance
- Corrosion and pressure resistant
- Type
- Pressure Sand Filter
- Material
- Stainless Steel 304/316
- Thickness
- 4 mm to 12 mm (varies by model)
- Thermal Shrinkage
- 1%
- Working Temperature
- 0C to 60C
- Application
- Industrial Water Filtration, Wastewater Treatment, Swimming Pools
- Design Standard
- ASME/IS standard compliant
- Inlet/Outlet Connection
- Flanged, customizable diameter
- Leg Support
- Heavy-duty stainless steel
- Operating Principle
- Suspended solids removal by mechanical filtration
- Support Media
- Gravel, Pebbles, Sand
- Pressure Rating
- Up to 10 Bar
- Backwash Facility
- Automatic/Manual
- Manhole
- Top mounted with clamp lock
- Gasket Material
- EPDM/Silicon
- Surface Finish
- Mirror/Matte Polish
Sand Filter Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 3 Days
About Sand Filter
- Design Flow Rate: 20 m/hr (scalable based on tank size)
- Working Pressure: 4.0 kg/cm (Test pressure at 1.5 times working pressure)
- Material of Construction (MOC): Mild Steel with Epoxy Paint, FRP, or Stainless Steel
- Operating Temperature: Ambient water temperature up to 45C
-
- Fine Sand (Effective Size): 0.45 mm to 0.55 mm
- Coarse Sand / Silex: 1.0 mm to 2.0 mm support layers
- Gravel Support Bed: Graduated layers ranging from 2.0 mm up to 6.0 mm
- Silica Content: Silica Content (SiO) > 95% Starke Filter Media
- Uniformity Coefficient (UC): Uniformity Coefficient (UC) < 1.5 Starke Filter Media
