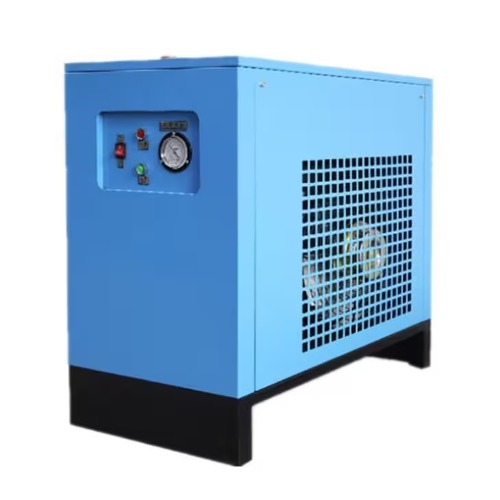

Send InquiryREFRIGENERATED AIR DRYER
Price 25000.0 INR/ Unit
MOQ : 1 Unit
REFRIGENERATED AIR DRYER Specification
- Efficiency (%)
- 99%
- Diameter
- TO TO 1000 Millimeter (mm)
- Capacity
- 10 TO 10000 Ltr/hr
- Usage
- Pneumatic Tools,Cylinders & Valves,Assembly Lines,Pharmaceuticals,Food & Beverage,Electronics,Sandblasting & Coating,Automotive Workshops,,Petrochemical Plants
- Material
- Carbon Steel
- Size
- 20 CFM TO 1000 CFM
- Height
- 200 TO 1000 Millimeter (mm)
- Product Type
- Air Dryers or Compressed Air Dryers., Refrigerated or Refrigeration Dryer,Automatic Refrigerated Air Dryer,High-Pressure Refrigerated Dryers,VSD (Variable Speed Drive) Dryers, Air-cooled or Water-cooled DRYER
- Weight
- 200 TO 1000 Kilograms (kg)
- Color
- BLUE
- Width
- 200 TO 1000 Millimeter (mm)
- Length
- 200 TO 1000 Millimeter (mm)
- Working Temperature
- 45 TO 120 Celsius (oC)
- Application
- AIR, General Manufacturing,Automotive,Pneumatic Tools & Systems,Pharmaceutical Production,Food and Beverage,Hybrid Systems
REFRIGENERATED AIR DRYER Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 10 Units Per Week
- Delivery Time
- 3 Days
- Sample Available
- No
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- BOX PACKING
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE
About REFRIGENERATED AIR DRYER
Core Performance Parameters Flow Capacity:
Ranges widely from 10 CFM to 25,000 CFM depending on the compressor size.
Pressure Dew Point (PDP): Typically +2C to +10C (+35F to +50F) at line pressure,
meeting ISO 8573-1 Class 4 or 5 air purity standards.
Working Pressure: Standard operating pressures range between 0.6 to 1.6 MPa (6 to 16 barg / 90 to 230 psi).
Pressure Drop: Very low system restriction, typically 0.1 kg/cm or less ( 3 psi) across the unit.
Operating Conditions Maximum Inlet Air Temperature: Standard models accept up to 45C to 55C (High-temperature variants can handle up to 65C).
Ambient Operating Temperature: Best operational efficiency occurs between 2C and 45C.
Cooling Method: Primarily Air-Cooled via an external fan condenser, though large plant capacities utilize Water-Cooled shell and tube exchangers.
Structural & Electrical Specifications Heat Exchanger Design: Modern units utilize a highly efficient 3-in-1 integrated alloy aluminum structure combining the air-to-air precooler, evaporator, and moisture separator into one shell.
Refrigerant Compressor: Hermetically sealed, low-noise reciprocating or scroll compressors.
Electrical Power Supply:Small to Medium Systems (20 - 4000 CFM): 220V / 1 Phase / 50HzLarge Systems (500 CFM & Above): 415V / 3 Phase / 50HzCondensate Drainage: Equipped with an adjustable automatic electronic timer drain or zero-loss float drain to eliminate fluid build-up.
