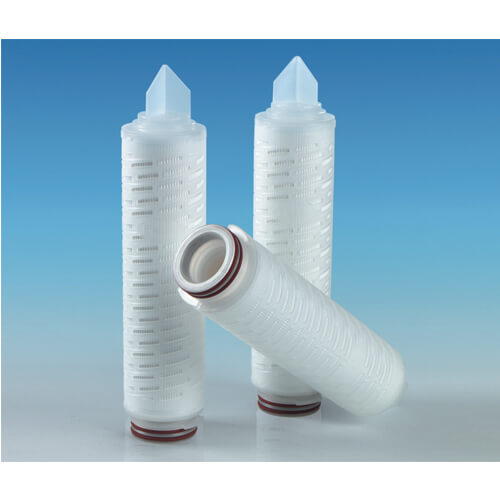

Pp Pleated Filter Cartridges

Name: Pp Pleated Filter Cartridges
Brand: PIN FILT TECHNOLOGIES
Price: 7498.0 INR
Availability: InStock

Price 7498.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pp Pleated Filter Cartridges Specification

Outlet Diameter
2 TO 8 Inch (in)

Pore Size
2 TO 8

Pressure
5-16 Bar

Filter Media
Polypropylene (PP)

Inlet Diameter
2 TO 8 Inch (in)

Shape
CYLINDRICAL

Usage
Pharmaceutical & Biotechnology Industries Compressed Air Sterilization Fermentation & Bioreactor Air Supply Aseptic Filling & Packaging Food & Beverage Processing Dairy & Brewing Industries Sterile Tank & Vessel Venting Medical & Laboratory Applications Cosmetic Manufacturing Chemical & Process Industries Instrument & Process Air Filtration Removal of Bacteria, Microorganisms & Fine Particles

Size
20 TO 60

Height
63 TO 80 Millimeter (mm)

Diameter
3 TO 8 Inch (in)

Product Type
Sterile air filters provide absolute microbial removal to safeguard compressed air, gas lines, and tank ventilation systems across critical industrial processes. They are widely used in the pharmaceutical, biotechnology, and food & beverage sectors to prevent product contamination from airborne bacteria and yeasts.Core Filtration SpecificationsAbsolute Rating: Standardized at 0.2 microns ( m). At this size, the filter provides absolute barrier retention against the smallest bacteria (such as Brevundimonas diminuta).Efficiency: Provides 99.9999% efficiency at its rated micron level. Unlike coarse pre-filters, they capture sub-micron pathogens, aerosols, and fine particulate matter using size exclusion and adsorption mechanisms.Hydrophobic Property: Typically constructed with PTFE (Polytetrafluoroethylene) or PVDF membranes. This inherent hydrophobicity repels moisture, ensuring unrestricted airflow and preventing liquid blinding even in highly humid air streams.Structural ConstructionFilter Element: Built with highly durable internal cores. Leading manufacturers like Donaldson Filtration Solutions use stainless steel support cages to withstand fluctuating pressure drops and back-pressure shocks.Housing Casing: Fabricated from mirror-polished SS 316 or SS 316L stainless steel to maintain a sanitary, crevice-free environment that prevents bio-film formation. Seals are typically made using high-temperature Viton or silicone O-rings.Sterilization Tolerance: Engineered to withstand aggressive sanitation processes. High-grade cartridges can endure up to 100 to 150 Steam-In-Place (SIP) cycles or repeated autoclaving at temperatures up to 134 C without compromising membrane integrity.Typical Product ConfigurationsDonaldson LifeTec P-SRF C 07/30 Sterile Air Filter Element 20,908.87VTC SolarFeatures a high-performance hydrophobic PTFE membrane supported by a rugged stainless steel structural core.Validated at 0.2 m absolute rating, making it suitable for high-temperature compressed air and sterile tank vent systems.This industrial-grade element is available through online distributors like VTC Solar.Cole-Parmer Sterilized Air Filter; 0.2 m Pore, 50mm Dia, 1/Pk 640.00Cole-Parmer IndiaA self-contained venting disc filter featuring a hydrophobic PTFE membrane housed in a lightweight polypropylene body.Optimized for small-scale critical applications such as degassing bioreactors, culture vessels, or small fermentation tanks.Designed to tolerate up to 30 autoclave sterilization cycles at 121 C and is available directly via Cole-Parmer India.To recommend the best filter element or housing setup, could you share:Your estimated flow rate (m /h or CFM) and line operating pressure?Is this for an online compressed air line or a static storage tank vent?I can provide the specific housing dimensions or layout calculations based on your requirements.

Weight
0.5 TO 2 Kilograms (kg)

Color
SILVER

Length
127 TO 1016 Millimeter (mm)

Width
63 TO 80 Millimeter (mm)

Application
Water Treatment & Purification: Used heavily in the pre-filtration stages for Reverse Osmosis (RO) systems,Food & Beverage Processing,Pharmaceuticals & Biotechnology: Utilized as a critical pre-filter prior to absolute sterile membrane filtration,Chemicals & Petrochemicals,Electronics & Semiconductors

Pp Pleated Filter Cartridges Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Pp Pleated Filter Cartridges

Sterile air filters provide absolute microbial removal to safeguard compressed air, gas lines, and tank ventilation systems across critical industrial processes. They are widely used in the pharmaceutical, biotechnology, and food & beverage sectors to prevent product contamination from airborne bacteria and yeasts.

Core Filtration Specifications

Absolute Rating: Standardized at 0.2 microns (m). At this size, the filter provides absolute barrier retention against the smallest bacteria (such as Brevundimonas diminuta).
Efficiency: Provides 99.9999% efficiency at its rated micron level. Unlike coarse pre-filters, they capture sub-micron pathogens, aerosols, and fine particulate matter using size exclusion and adsorption mechanisms.
Hydrophobic Property: Typically constructed with PTFE (Polytetrafluoroethylene) or PVDF membranes. This inherent hydrophobicity repels moisture, ensuring unrestricted airflow and preventing liquid blinding even in highly humid air streams.

Structural Construction

Filter Element: Built with highly durable internal cores. Leading manufacturers like Donaldson Filtration Solutions use stainless steel support cages to withstand fluctuating pressure drops and back-pressure shocks.
Housing Casing: Fabricated from mirror-polished SS 316 or SS 316L stainless steel to maintain a sanitary, crevice-free environment that prevents bio-film formation. Seals are typically made using high-temperature Viton or silicone O-rings.
Sterilization Tolerance: Engineered to withstand aggressive sanitation processes. High-grade cartridges can endure up to 100 to 150 Steam-In-Place (SIP) cycles or repeated autoclaving at temperatures up to 134C without compromising membrane integrity.

Typical Product Configurations

Donaldson LifeTec P-SRF C 07/30 Sterile Air Filter Element

20,908.87

VTC Solar

Features a high-performance hydrophobic PTFE membrane supported by a rugged stainless steel structural core.
Validated at 0.2 m absolute rating, making it suitable for high-temperature compressed air and sterile tank vent systems.
This industrial-grade element is available through online distributors like VTC Solar.

Cole-Parmer Sterilized Air Filter; 0.2m Pore, 50mm Dia, 1/Pk

640.00

Cole-Parmer India

A self-contained venting disc filter featuring a hydrophobic PTFE membrane housed in a lightweight polypropylene body.
Optimized for small-scale critical applications such as degassing bioreactors, culture vessels, or small fermentation tanks.
Designed to tolerate up to 30 autoclave sterilization cycles at 121C and is available directly via Cole-Parmer India.

To recommend the best filter element or housing setup, could you share:

Your estimated flow rate (m/h or CFM) and line operating pressure?
Is this for an online compressed air line or a static storage tank vent?

I can provide the specific housing dimensions or layout calculations based on your requirements.

Advanced Sterilizing Grade Filtration

The PP Pleated Filter Cartridges utilize a robust combination of SS 316L stainless steel housing and borosilicate microfiber filter media. This advanced construction ensures a 0.2-micron rating and 99.99% efficiency, making them optimal for critical air and liquid filtration. Their high temperature and pressure resistance allow use in applications requiring sterilization, SIP compatibility, and reliable performance under demanding conditions.

Versatile Applications Across Industries

These cartridges are trusted in pharmaceutical, biotechnology, food processing, beverage, electronics, and water treatment sectors. Their sterile filtration capability is vital for processes like compressed air sterilization, fermentation, aseptic filling, and protecting RO systems. The filters' ability to retain bacteria and microorganisms safeguards product purity in sensitive applications.

Customizable and Durable Performance

With various available sizes, lengths (127-1016 mm), diameters (63-80 mm), and flow rates (10-100 m3/hr), these filters offer flexibility to suit specific requirements. Engineered for longevity and ease of integration, they feature low pressure drop, high flow capacity, corrosion resistance, and robust construction-delivering reliability and reduced maintenance for industrial users.

FAQ's of Pp Pleated Filter Cartridges:

Q: How do PP Pleated Filter Cartridges ensure sterile filtration in industrial applications?

A: PP Pleated Filter Cartridges combine a 0.2-micron borosilicate microfiber media with SS 316L stainless steel housing, providing highly effective retention of bacteria and microorganisms at 99.99% efficiency. This design ensures sterile air and liquid filtration in sensitive processes.

Q: What industries commonly use these filter cartridges and why?

A: These filters are widely used in pharmaceuticals, biotechnology, food and beverage processing, water purification, chemical production, and electronics. Their high-efficiency, SIP compatibility, and robust microbial control make them indispensable for sterile environments and product protection.

Q: When should these filter cartridges be replaced or serviced?

A: Replacement intervals depend on the process load, but the filters' long service life and low pressure drop allow for extended use. Regular monitoring of pressure differential and performance should guide timely cartridge replacement or cleaning according to standard maintenance schedules.

Q: Where can these cartridges be installed in a processing system?

A: PP Pleated Filter Cartridges integrate seamlessly into filtration housings for pre-RO filtration, aseptic filling, tank and vessel venting, compressed air sterilization, and process air filtration points in pharmaceutical, food, beverage, and laboratory environments.

Q: What steps are involved in the filter installation and steam sterilization process?

A: Installation involves placing the cartridge in a compatible housing, ensuring secure seals. For sterilization, steam-in-place (SIP) processes up to 120C are supported, allowing filters to be sanitized without removal, maintaining hygienic integrity for critical applications.

Q: How does the filter's construction benefit long-term usage?

A: Made from corrosion-resistant SS 316L and borosilicate microfiber, these cartridges deliver long operational life even under frequent sterilization and variable conditions. Their robust design minimizes replacements, reduces maintenance costs, and ensures consistent sterile performance.

Q: What are the primary advantages of using these filter cartridges over alternatives?

A: Benefits include outstanding microbial retention, high flow rate with low pressure drop, exceptional temperature and pressure tolerance, compatibility with SIP, and availability in customizable sizes for diverse process requirements-offering reliability and cost-efficiency in critical applications.
