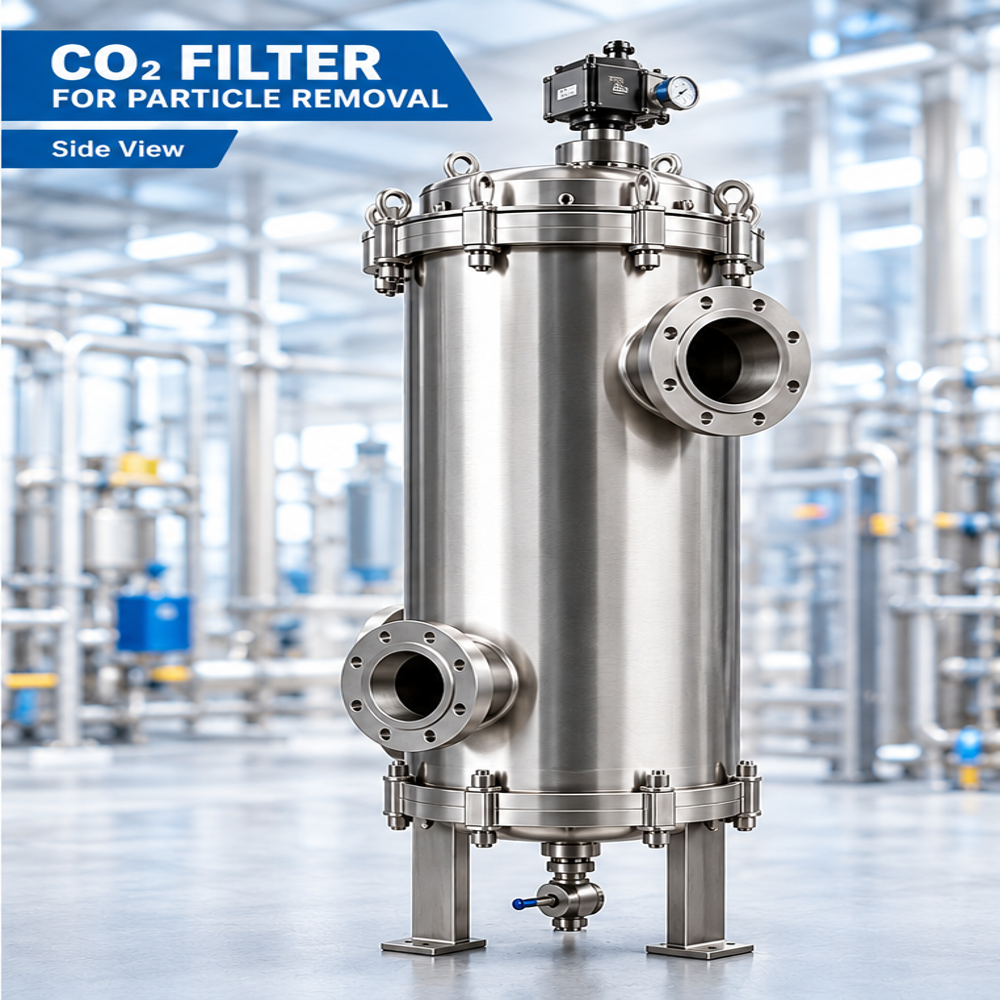

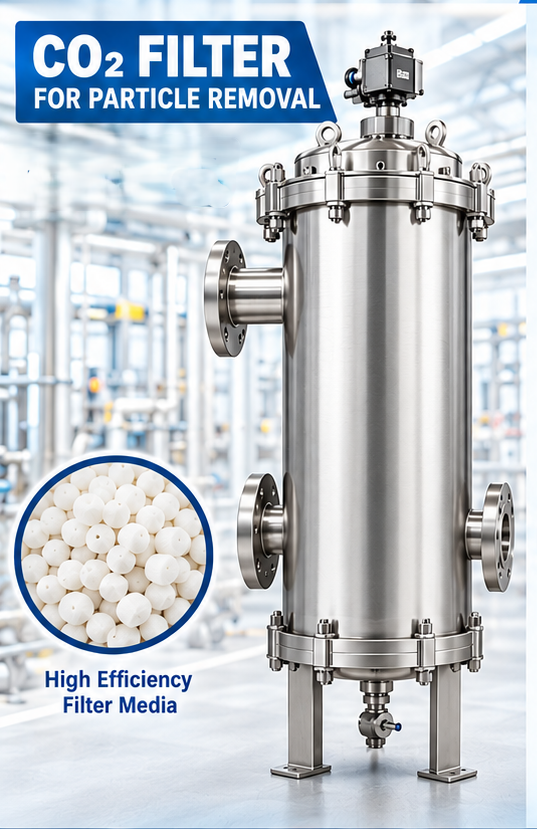

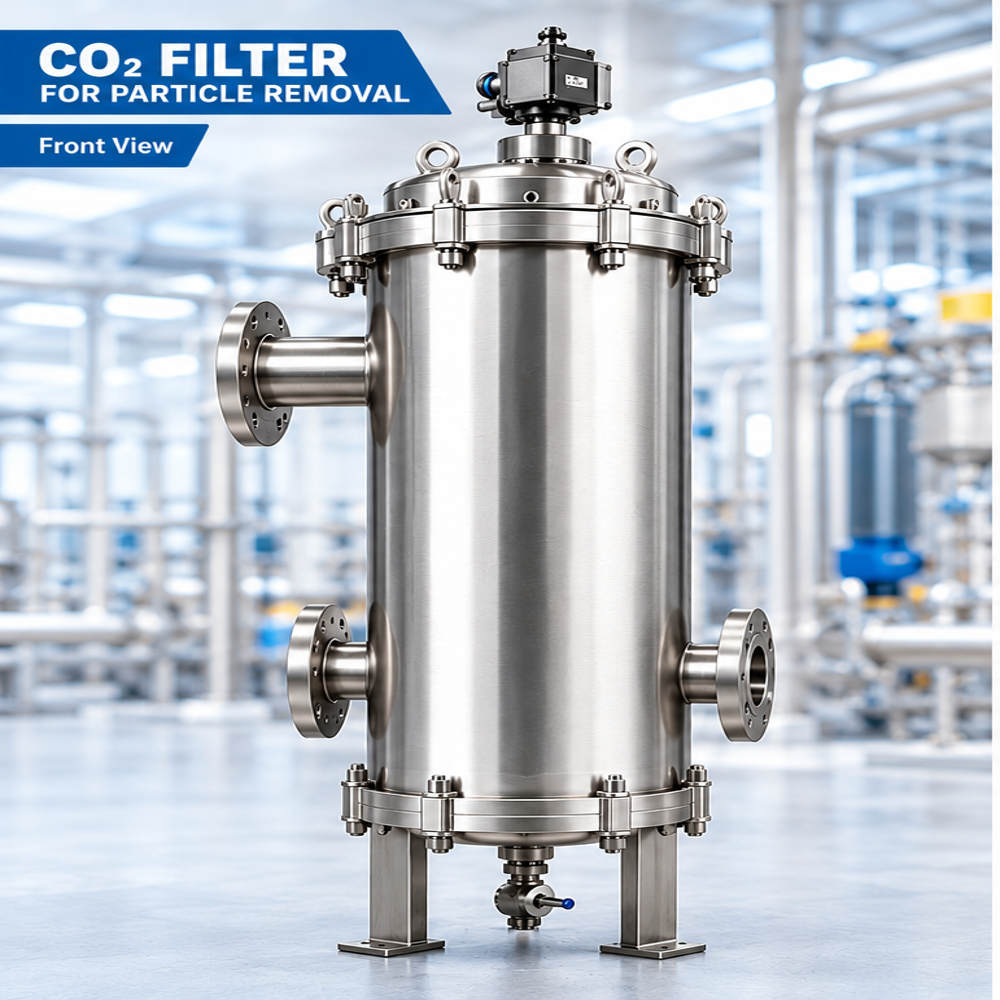

Send InquiryCO2 Particle Removal Filter
Price 35000.0 INR/ Unit
MOQ : 1 Number
CO2 Particle Removal Filter Specification
- Capacity
- 20 TO 2000 m3/hr
- Efficiency (%)
- 99 %
- Diameter
- 80 mm to 900 mm+ Millimeter (mm)
- Resistance
- 0.15 bar (2.1 psi) TO 0.35 bar (5.0 psi)
- Usage
- The CO2 Particle Removal Filter is installed directly into gas process pipelines across various critical stages, such as pre-compressor protection and liquefaction plants, to intercept contaminants and ensure purity. Operators must monitor differential pressure daily and replace filter elements when the pressure drop reaches between 1.0 and 1.7 bar
- Size
- 250 mm TO 2,000 mm+
- Material
- Stainless Steel
- Height
- 250 mm TO 2,000 mm+ Millimeter (mm)
- Product Type
- By Pressure Rating: High-Pressure Gas Filter / Compressed Gas FilterBy Function: Coalescing Gas Filter / Particulate Dust Filter / Gas-Liquid SeparatorBy Design: Cartridge-Type Pipeline Filter / Pressure Vessel Filter
- Weight
- 80 to 900 + Kilograms (kg)
- Color
- SILVER
- Width
- 80 mm to 900 mm+ Millimeter (mm)
- Length
- 250 mm TO 2,000 mm+ Millimeter (mm)
- Working Temperature
- -10 TO 120 Celsius (oC)
- Application
- Food & Beverage ProcessingCarbon Capture & Storage (CCS)Industrial Gas Manufacturing & LiquefactionDry Ice ProductionEnhanced Oil Recovery (EOR)Chemical Processing & Urea ManufacturingMedical Laboratory & CO2 Incubators
CO2 Particle Removal Filter Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Paypal, Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cash Against Delivery (CAD), Cheque
- Supply Ability
- 1 Number Per Week
- Delivery Time
- 8 Days
- Sample Available
- Yes
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Packaging Details
- BOX PACKING
- Main Export Market(s)
- Asia, Australia, Middle East, Africa, Central America, North America, South America, Eastern Europe, Western Europe
- Main Domestic Market
- All India
- Certifications
- TEST CERTIFICATE
About CO2 Particle Removal Filter
Technical Specifications (Min to Max Parameters)
| Product Attribute | Minimum Value | Maximum Value |
|---|---|---|
| Operating Pressure | 1 bar | 100 bar |
| Filtration Rating (Microns) | 0.01 m | 10 m |
| Filtration Efficiency | 99.0% | 99.97% |
| Operating Temperature | -20C | 100C |
| Initial Clean Pressure Drop (P) | 0.15 bar (2.1 psi) | 0.35 bar (5.0 psi) |
| Max / Changeout Pressure Drop | 1.0 bar (14.5 psi) | 1.7 bar (24.6 psi) |
| Post-Filtration Particle Output | 1 ppmw | 5 ppmw |
| Housing Material | SS 304 | SS 316L / Exotic Alloys |
| Filter Media Material | Borosilicate Glass Microfiber | Sintered Mesh / PTFE |
Key Features & Business Benefits
- Corrosion-Resistant Housing: Built exclusively with high-grade Stainless Steel to withstand moisture-laden CO2 gas without degrading.
- Multi-Stage Capabilities: Can be configured as a pre-filter for bulk dust or a sub-micron coalescing filter for ultra-pure applications.
- Low Pressure Drop: Optimized pleated design ensures minimal energy loss across your compression loop.
- Easy Maintenance: Quick-release flange closures allow for rapid element changeouts, minimizing plant downtime.
- Industrial Compliance: Manufactured to meet strict pressure vessel codes and international quality standards.
Core Industrial Applications
- Carbon Capture & Storage (CCS): Post-combustion gas cleaning before compression.
- Food & Beverage (F&B Grade CO2): Removing impurities for bottling, carbonation, and brewing.
- Industrial Gas Supply: Protecting equipment during CO2 liquefaction and cylinder filling.
- Enhanced Oil Recovery (EOR): High-pressure injection line protection.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Air Line Filters Category
Aluminum Filter Housing
Price 5000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Color : blue
Weight : Approx. 1.5 2.5 kg (depending on size) Kilograms (kg)
Usage : Industrial Liquid FiltrationChemical ProcessingWater PurificationEquipment ProtectionPreFiltration for RO PlantsParticulate Removal
Length : 101000 Millimeter (mm)
Industrial Aluminium Housing
Price 10000.0 INR / Piece
Minimum Order Quantity : 10 Pieces
Color : BLUE OR CUSTOMISED
Weight : 201000 Kilograms (kg)
Usage : Equipment Protection,Fluid Purification,System Maintenance,Water Treatment,CHEMICAL PROCESSING,,Petrochemicals,Power Generation, FOOD & BEVERAGES
Length : 2000 Millimeter (mm)

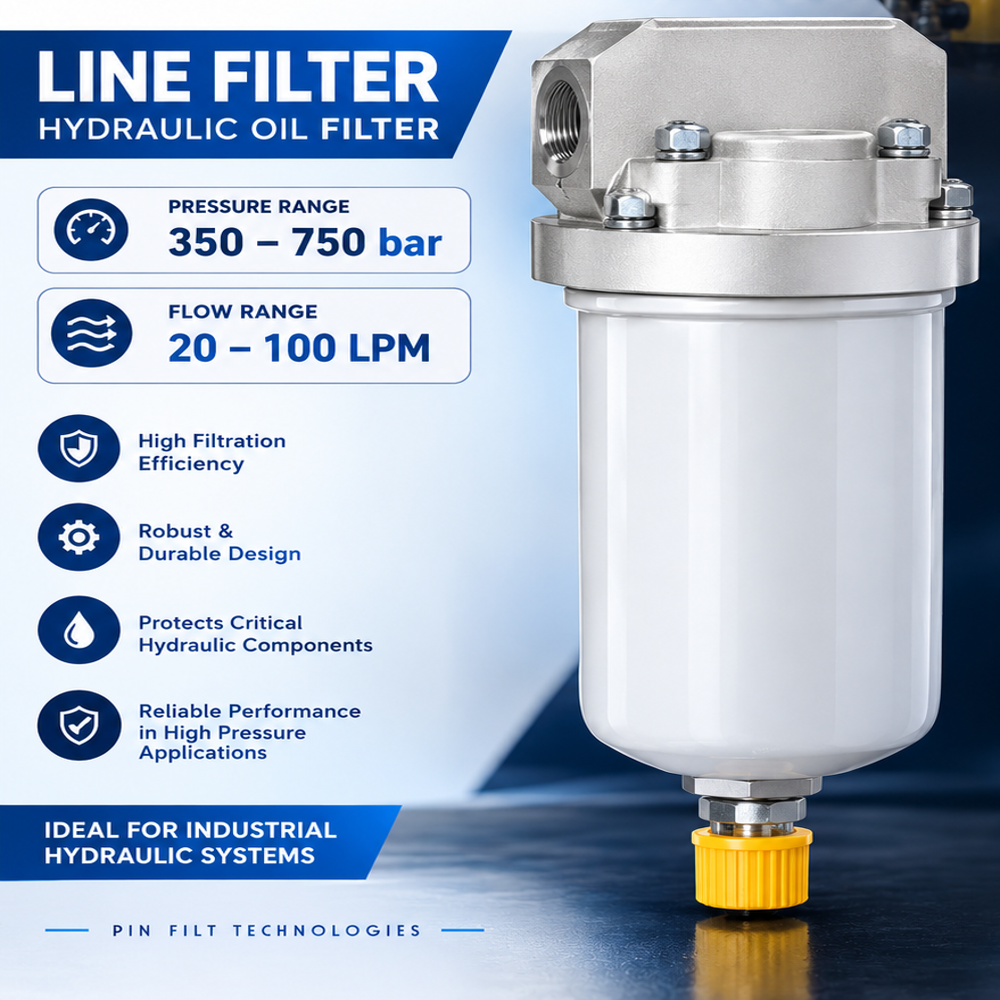

High Pressure Filter
